X250 cab additional 12 volt power options

Discussion in 'Tech/Mech General' started by Techno, Jan 7, 2015.

  1. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    X250 cab extra 12volt&USB options. THIS is left hand drive so just imagine it transposed for RHD

    First, previous related threads.........
    :-Replacement 12volt sockets
    :-12volt socket permanent live

    So extra outlet options? a bit of dismantling soon finds suitable places but initially I have chosen right in front of the driver so that USB items can be charged while in the storage below the steering column. Also My CHINKYNAV on my DIY mounting bracket will plug straight in with a very short lead.

    [​IMG]
    Removal of the instruments and the radio allows full access.

    A 25mm hole drilled and then filed out to the profile of the USB outlet.
    [​IMG]
    [​IMG]
    [​IMG]

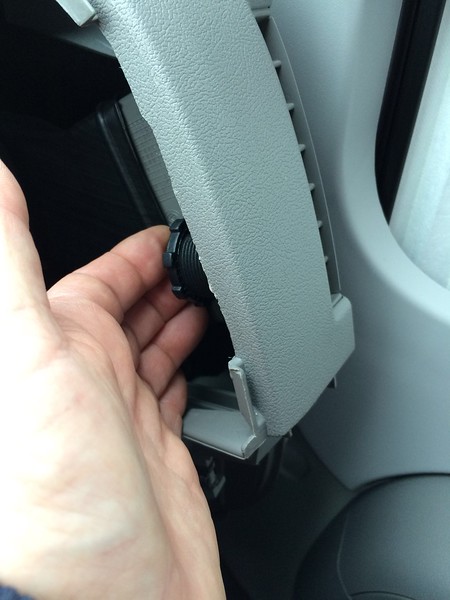

    Important! spray the thread with silicon before inserting or the lockring will be a struggle.
    [​IMG]
    [​IMG]
    [​IMG]

    These positions on passenger side are also suitable
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    The best method of adding extra lines off the feed is with these WAGO connectors
    [​IMG]

    Last edited: Jan 7, 2015
    • Like it Like it x 4
    • Informative Informative x 2
  2. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    Instruments removal.
    Remove the T25 Torx screws, one either side of the binacle
    [​IMG]
    Then pull up on the leading edge near the windscreen, it will then pull clear towards you.
    The instrument cluster is held by 2 Philips screws one either end and then it will pull upwards and free.
    [​IMG]
    [​IMG]
    To replace just reverse the procedure.
    [​IMG]

    • Like it Like it x 4
  3. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    Firstly before I continue, this position is also a suitable candidate in the passenger side shelf
    [​IMG]

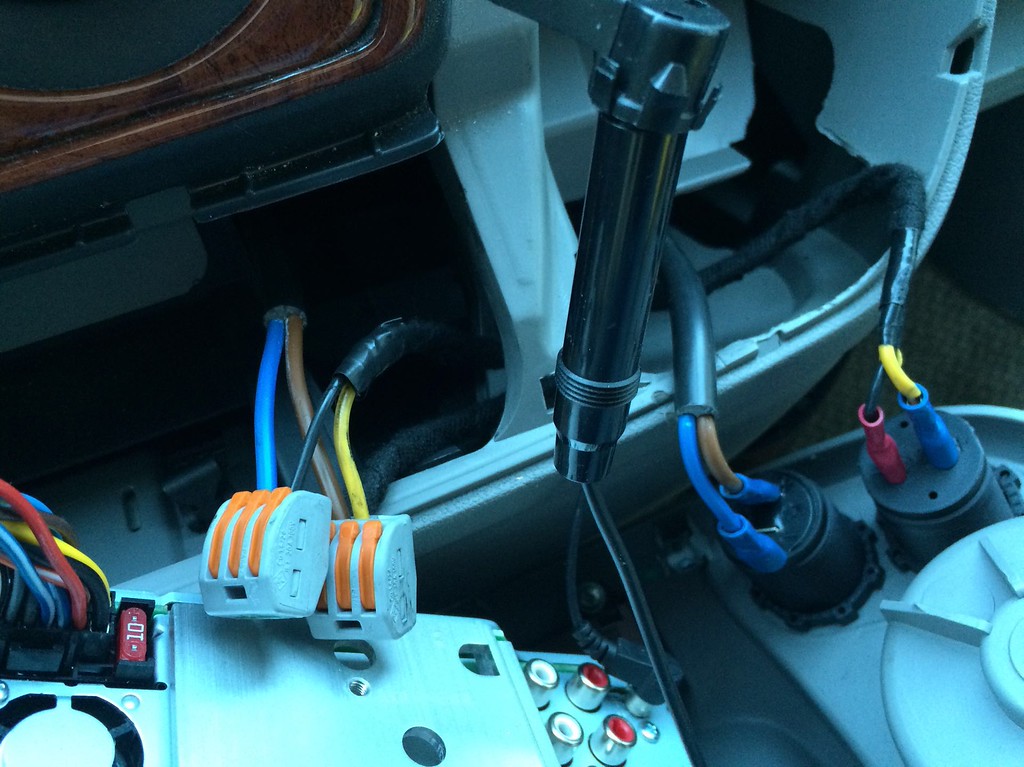

    Now if you recall in the thread "permanet live socket" once done one of the original ignition switched socket feeds became redundant. I don't want the USB outlets to be always on so I have utilised those wires using 3 way Wago's leaving a spare connection for future.
    [​IMG]
    [​IMG]
    They then just push into this recess that does not interfere with anything else.
    [​IMG]

    • Like it Like it x 2
  4. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    So now I have a nice tidy set up
    [​IMG]
    I have moved my journey recorder to the pen tray which now means I can leave it in place as the blinds will close without clashing.
    [​IMG]
    [​IMG]
    [​IMG]

    • Like it Like it x 6
    • Informative Informative x 1
  5. Margaritaman

    Margaritaman Funster

    Joined:
    Oct 27, 2013
    Messages:
    205
    Location:
    East Yorkshire
    Ratings:
    +419
    Great post and Happy New Year Andy. Those Wagos look handy! Chris

    • Like it Like it x 1
  6. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    To you too! Yes they come in many different configurations, just search WAGO on ebay.
    These are the re useable variety and come in 2 3 or 5 way
    Prices vary dramatically so search well.

  7. Falcon 269

    Falcon 269 Funster

    Joined:
    Jul 11, 2013
    Messages:
    249
    Location:
    Spain
    Ratings:
    +678
    Awesome info, Andy ... thanks so much for this and all your other tech threads. Your nickname is extremely apt and thoroughly deserved!

  8. Stroppy Bird

    Stroppy Bird Funster

    Joined:
    Mar 11, 2014
    Messages:
    623
    Location:
    Lincs
    Ratings:
    +887
    Sorry for resurrecting this but I'm planning on doing similar and changing the sockets in the cab (can't believe how easily the power plugs pop out of them! And Mr Stroppy gets, well, stroppy, when his phone/ipad won't charge properly) and while I'm at it adding a second socket in the central compartment. So @Techno many thanks for the guide, I've just got a couple of questions.

    Firstly - these WAGO connectors look good - am I right in thinking that I need a pair of 3 ways and put the feed wires from one of the existing sockets into them and then two more wires from each WAGO (one going to the existing socket, and one to the new socket).

    Secondly - what size wire to the new socket? I'm planning on using the feed from the socket marked 180watt max (I realise that this total power will be split between the two sockets). I was thinking 20amp 1.5mm? Or would 2.5mm be better?

    Thanks in anticipation

  9. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    Yes

    At least as big as existing.

    • Thanks Thanks x 1
    • Useful Useful x 1
  10. Stroppy Bird

    Stroppy Bird Funster

    Joined:
    Mar 11, 2014
    Messages:
    623
    Location:
    Lincs
    Ratings:
    +887
    Thanks @Techno, all bits now being ordered. Hopefully will finally properly sort the charging of all Mr Stroppys gadgets when on the move.

  11. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    Update
    Cheapest for WAGO is I believe screwfix

  12. Sportsnapper

    Sportsnapper Funster

    Joined:
    Sep 3, 2016
    Messages:
    107
    Location:
    Reading
    Ratings:
    +100
    @Techno - Great thread(s) - thanks. Just pimping our new to us Hymer with an X250 cab. Planning on replacing one of the passengers 12 volt sockets (Co-pilot will ask why we need so many USBs if I do both!), and putting one on the RHS somewhere. How do you dismantle the drivers lower shelf?
    I've just installed the head unit removed from our previous M/home - and it had a hands free microphone so needed to get it over the driver's side. The pictures of speedo removal were invaluable. I've got the drivers (RHS) vent out by pulling it - Looks like it was already broken - from a previous install and there's a screw missing. Finally, any problem using a WAGO and taking a feed from one of the existing 12v sockets on the passenger side across to the right for a drivers side USB?
    BTW Screwfix is cheap for WAGO, but only if you want a lot - I found a pretty good deal on Amazon.

    • Informative Informative x 1
  13. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    15,061
    Location:
    Leeds the one up North
    Ratings:
    +21,710
    Recent addition of a Qi charger phone mount
    I ordered a special 200mm cable for this so it can share the outlet with the dash cam and both work fine
    Sat navs are a complete waste of money if you have a good smart phone and google maps

    • Like it Like it x 2
  14. autorouter

    autorouter Funster

    Joined:
    Apr 27, 2016
    Messages:
    781
    Location:
    Manchester
    Ratings:
    +703
    Toolstation do them in packs of 10.
