The reason for the change is that 12 volt plugs usually keep coming out of contact over bumps causing loss of power to sat navs/ chargers etc without you realising until it proves inconvenient.
These twist lock sockets prevent this
Pictures a bit out of sequence as I've already fitted the new sockets.
First remove the rubber seat for the ashtray cup holder. Then remove the T25 torqs screw.


The whole switch panel then pulls up on the front edge nearest you and out towards you.
The pair of original connectors have a seperate small +ve wire for illumination of the cigarette lighter socket, this wont be needed so cut off and tape back.
The large yellow +ve requires a blue female 6.3mm spade and the -ve black a red 6.3mm





Tootles

Funster
Deceased RIP
Sep 14, 2013
9,511
34,799
Lancaster
Funster No
28,093
MH
Coachbuilt
Exp
Was a newbie, now a Middie.
Great post, and a really good idea.(y)(y)

OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
That's gotta b the fastest like I ever got lol (y):LOL:

Subscribers  do not see these advertisements


OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
I bought the sockets from ebay China cheap. A UK seller Autostar is VERY expensive for the same items


Tootles

Funster
Deceased RIP
Sep 14, 2013
9,511
34,799
Lancaster
Funster No
28,093
MH
Coachbuilt
Exp
Was a newbie, now a Middie.
Yes, I have a bell rigged up and when a non-political post comes on, it rings, allowing me to respond poste-haste.....;);)


DuxDeluxe

LIFE MEMBER
Jul 10, 2008
14,605
71,923
Planet Zog
Funster No
3,243
MH
A woosh bang van
Exp
since 2008
Thanks Andy - good timing; was just looking at this..........

Subscribers  do not see these advertisements


Dec 28, 2011
2,426
2,769
Stokesley, North Yorks
Funster No
19,259
MH
JoaCamp75Q by Pilote
Exp
Still learning since 2010
One of these days you're going to find that you have nothing left to alter/improve and you're gonna be soooooo bored that you will have to buy another MH to start all over again. :Eeek:

OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
I bought here
Broken Link Removed

but lower available
Broken Link Removed

Subscribers  do not see these advertisements


OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
I think next job will be making one of them always on, probably do that this week or at Malvern.

OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
Also a big thanks to Eddie VanBitz for the bike loop extension (Strikeback alarm). I witnessed immigrants climbing out the back of a Romanian registered HGV right in front of the police station so for the first time I used it and tested it which gave me some peace of mind (y)

BTW the immigrants were not Romanians but English speaking black men or at least the one who spoke to me and he was actually polite before they disappeared through the trees at the bottom of the parking area. So my conclusion is the RO drivers are taking a big bung

Subscribers  do not see these advertisements


Last edited:
OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010

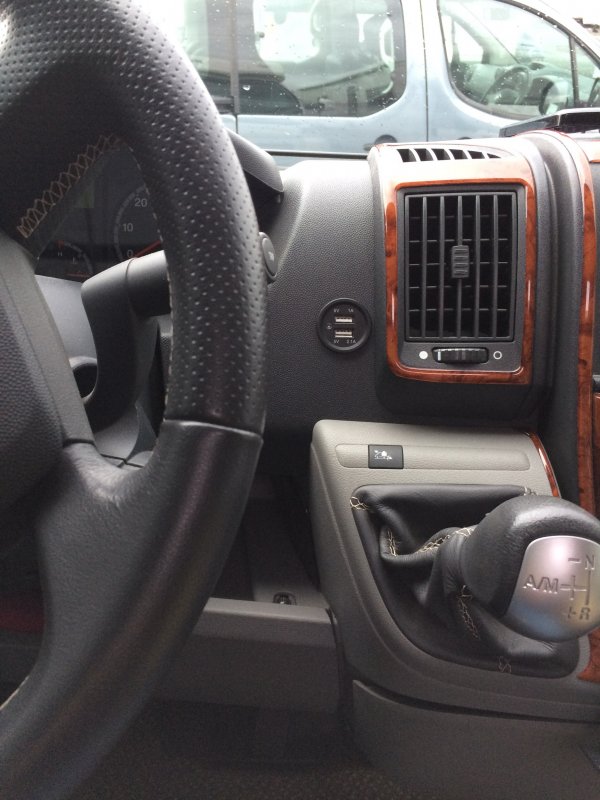

While doing this you could easily replace one socket with a twin USB
Broken Link Removed

Edit even better less than £5
Broken Link Removed
Broken Link Removed

Subscribers  do not see these advertisements


Last edited:

Bobby22

Free Member
Dec 15, 2013
1,537
6,408
Scotland
Funster No
29,386
MH
Rapido 680ff
Exp
since 2013
While doing this you could easily replace one socket with a twin USB
Broken Link Removed

Edit even better less than £5
Broken Link Removed
Broken Link Removed


Andy, i have been looking at your mod for the usb charger.
My MH already has 2 x cigar type fittings side by side .......... will your mod for the twin usb fitting slot straight in place of one of these.


Bobby22

Free Member
Dec 15, 2013
1,537
6,408
Scotland
Funster No
29,386
MH
Rapido 680ff
Exp
since 2013
Cheers thanks. (y)

Subscribers  do not see these advertisements



Minxy

LIFE MEMBER
Aug 22, 2007
32,421
65,810
E Yorks
Funster No
149
MH
Carthago Compactline
Exp
Since 1996, had Elddis/Swift/Rapido/Rimor/Chausson MHs. Autocruise/Globecar PVCs/Compactline i-138
Hmmmmm ... don't think we'll be changing ours for the fixed twist ones! Today we set off for our 'new to us' static caravan and stopped at Lidl for a few supplies, when we returned to the van one of the dogs had somehow caught the power cable going from the 12v cab socket to the sat nav and one part of the 'plug' casing and the inner parts were dangling and the other half of the casing was playing hide and seek - I eventually found it behind the passenger seat! Unfortunately the lead was well busted so we had to return home to get our spare one. If the plug hadn't been pulled out of the socket it could easily have damaged the sat nav cradle instead which would have been VERY expensive ... I had suggested that hubby puts in a twin socket specifically for the sat nav and camera underneath the steering wheel where there's a 'little shelf' so that we don't have wires dangling and monopolising the 12v sockets anyway ... guess what his FIRST job is when we get home! :sneaky:

Subscribers  do not see these advertisements



rolyk

Free Member
Oct 20, 2007
42
11
South Glos
Funster No
668
MH
Warwick Duo
Exp
Since 2007
Beware of the very cheap Chinese twin usb adapters from eBay which plug into the 12v socket. Mine decided to output 14.4 volts, instead of 5 volts, and it destroyed my dash camera and gps module. Well worth paying a few pounds more and getting a branded unit such as Veetop or Griffin. Saying that, there are more fakes of the branded products than the real thing, so it's best to buy direct from the manufacturer. I learrned the expensive way!

OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
I had suggested that hubby puts in a twin socket specifically for the sat nav and camera underneath the steering wheel where there's a 'little shelf' so that we don't have wires dangling and monopolising the 12v sockets anyway ... guess what his FIRST job is when we get home!
Broken Link Removed

Subscribers  do not see these advertisements


OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
Andy, i have been looking at your mod for the usb charger.
My MH already has 2 x cigar type fittings side by side .......... will your mod for the twin usb fitting slot straight in place of one of these.

Apr 27, 2008
11,778
13,879
Eastbourne East Sussex
Funster No
2,327
MH
Hymer low profile
Exp
Since 1972
I am going to do this, have already bought the socket (just one) as soon as I can figure out how to get the panel off. My satnav(s) keep going off as a result of loose plugs.

Perhaps someone on here knows (Mercedes Sprinter 07 vintage) No visible fixings, the panel in question is down below the pull out ashtray/cupholder/cig lighter.

OP
OP
Techno

Techno

LIFE MEMBER
Deceased RIP
Jul 28, 2010
15,475
20,752
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
I've been tinkering again and I want more dashboard sockets and USB's
Thread coming to a forum near you very soon :p

Subscribers  do not see these advertisements



Charlie

Free Member
May 16, 2015
3,211
3,639
Herefordshire / Worcestershire borders .
Funster No
36,385
MH
Auto Sleeper Kemerton.
Exp
Im a newbie
The reason for the change is that 12 volt plugs usually keep coming out of contact over bumps causing loss of power to sat navs/ chargers etc without you realising until it proves inconvenient.
These twist lock sockets prevent this
Pictures a bit out of sequence as I've already fitted the new sockets.
First remove the rubber seat for the ashtray cup holder. Then remove the T25 torqs screw.


The whole switch panel then pulls up on the front edge nearest you and out towards you.
The pair of original connectors have a seperate small +ve wire for illumination of the cigarette lighter socket, this wont be needed so cut off and tape back.
The large yellow +ve requires a blue female 6.3mm spade and the -ve black a red 6.3mm




I'm going to take a feed from the wires on the back of the 12V sockets down to a twin USB socket in the glove box.

Could you please confirm the yellow wire is +positive and the black wire is - negative ? Its the colour of your connectors that's throwing me !

Thanks.
