Truma boiler cold water connection. (1 Viewer)

[Swifter]

Not sure what I am doing wrong . I noticed a small leak in the cold water elbow so I am trying to replace it . Fitted the new one but as soon as I turn the pump on it leaks again. Is there a special way of fitting these ?
Thank you



[dunnah01]

There's a rubber o-ring in there that may not be seated properly



[Swifter]

There's a rubber o-ring in there that may not be seated properly

I did see that . I will check it again

^{_{Subscribers  do not see these advertisements}}



[Swifter]

Seems to be ok



[Stoosal]

Has the white coloured collet become misshapen? Has it been frozen?



[Swifter]

Has the white coloured collet become misshapen? Has it been frozen?

I’ve got replacement but that leaking as well

^{_{Subscribers  do not see these advertisements}}



[Manic]

I maybe wrong but is the pipe coming out of the boiler straight, as in no bulge on the end, that what photo looks like.
That type of fitting needs the bulge to push against the ’o’ ring.
red is split collar.




[Swifter]

It’s the same as the one I’ve removed . Can’t even turn the water on now as it’s leaking even with the new fitting . It must be something I am doing wrong



[Swifter]

I maybe wrong but is the pipe coming out of the boiler straight, as in no bulge on the end, that what photo looks like.
That type of fitting needs the bulge to push against the ’o’ ring.
red is split collar.
View attachment 699528

Yes there is a bulge at the end of the pipe

^{_{Subscribers  do not see these advertisements}}



[Two on Tour]

It looks to me that the split seal needs to expand when compressed to close the gap.
Maybe the rubber on rubber is causing some friction and preventing the split seal from closing up and forming a seal, maybe a little lubrication with some silicone grease on the parts is needed.



[Swifter]

It looks to me that the split seal needs to expand when compressed to close the gap.
Maybe the rubber on rubber is causing some friction and preventing the split seal from closing up and forming a seal, maybe a little lubrication with some silicone grease on the parts is needed.

Thank you . It’s driving me mad .



[Manic]

It looks to me that the split seal needs to expand when compressed to close the gap.
Maybe the rubber on rubber is causing some friction and preventing the split seal from closing up and forming a seal, maybe a little lubrication with some silicone grease on the parts is needed.

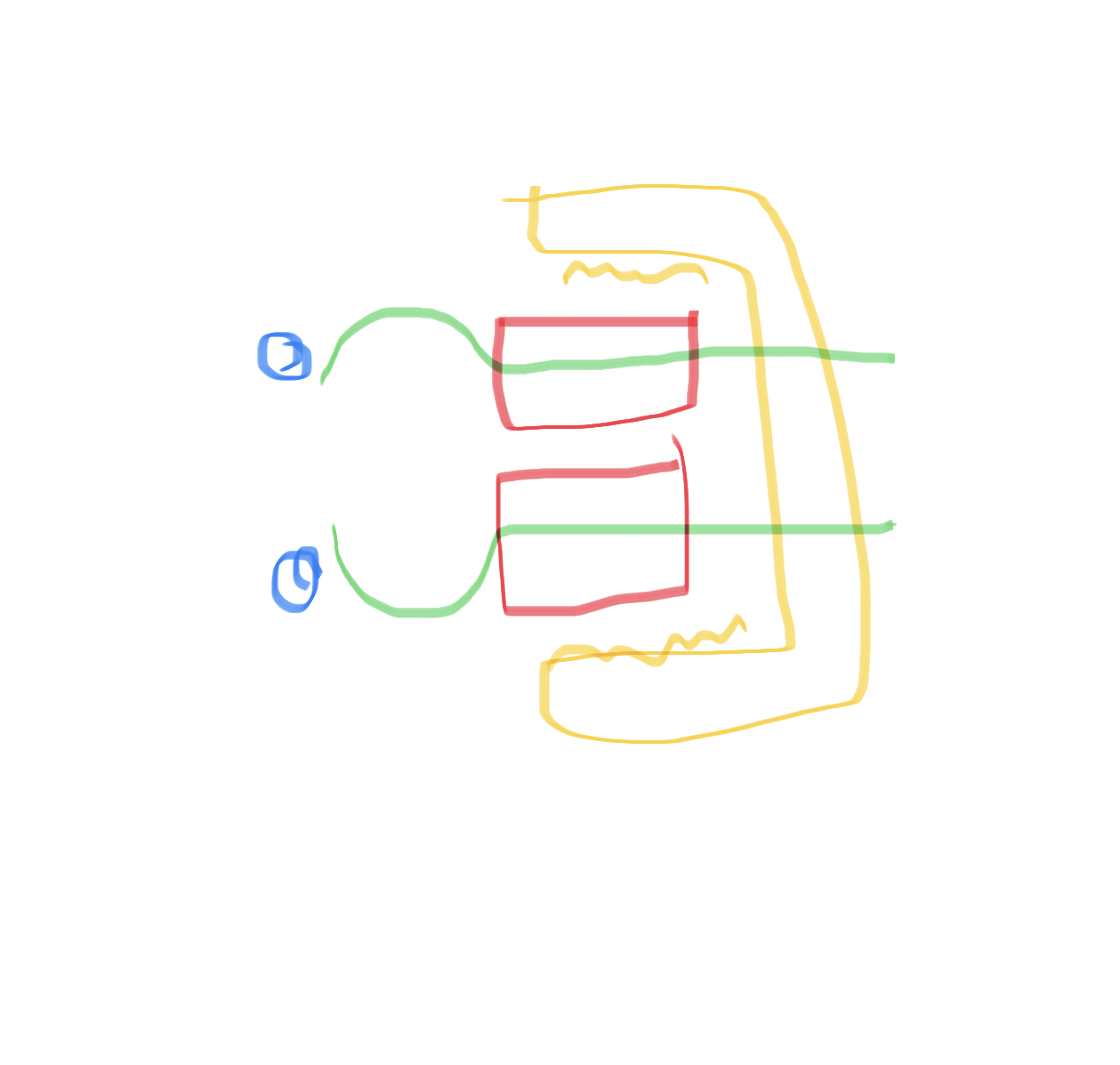

The split part doesn’t do any sealing it pushes over the bulge on the end of pipe and then pushes on the back of bulge

^{_{Subscribers  do not see these advertisements}}



[Two on Tour]

The split part doesn’t do any sealing it pushes over the bulge on the end of pipe and then pushes on the back of bulge

Okay, your drawing makes more sense now and the white split item is effectively a spring/tensioning device, is that correct ? which if it is then that seems a naff idea to me.



[Manic]

No , it’s so the nut has something to push-on. Nut hole has to be large enough to go over bulge and then split collar goes on to pipe for the nut to push-on



[Swifter]

I’ve tried it loads of times but it still leaks so no running water in the van . All I can do is order another cold water elbow and try again . Weird to have the same problem with 2 different fittings .

^{_{Subscribers  do not see these advertisements}}



[Stoosal]

I might try gently heating the end of the pipe and putting back on with the original part with some lubricant over new seal and leave it to sit for a while to mould back into shape before retrying. Sometimes the seals etc just go out of shape or a new one takes a bit of time to ‘fit’, especially in cold weather.
Is the new part a new manufacturers part or a pattern part? I’ve used new replacement parts before which simply don’t fit as well as original manufacturer parts.
It sounds a bit like the sort of thing that happens to me and I’m pulling my hair out!
Good luck!



[martin west dorset]

Are you sure you have the correct item as 2 types one for the pipes with the bulge the other type for straight pipes?



[Swifter]

Are you sure you have the correct item as 2 types one for the pipes with the bulge the other type for straight pipes?

It appeared to be exactly the same as the original,
I will try ordering another one,

^{_{Subscribers  do not see these advertisements}}



[Swifter]

I might try gently heating the end of the pipe and putting back on with the original part with some lubricant over new seal and leave it to sit for a while to mould back into shape before retrying. Sometimes the seals etc just go out of shape or a new one takes a bit of time to ‘fit’, especially in cold weather.
Is the new part a new manufacturers part or a pattern part? I’ve used new replacement parts before which simply don’t fit as well as original manufacturer parts.
It sounds a bit like the sort of thing that happens to me and I’m pulling my hair out!
Good luck!

It’s crazy that I can’t do a basic replacement on this . I might have to get a plumber out



[Two on Tour]

What diameter is that input pipe into your boiler, as I'm thinking, if the pipe diameter is a standard diameter then do you forget the original fittings, cut the bulge off and go with either a John Guest push fit elbow fitting or maybe a compression to push fit fitting?



[Manic]

You definitely have a bulge on the pipe because in your photo it looks straight

^{_{Subscribers  do not see these advertisements}}



[Swifter]

You definitely have a bulge on the pipe because in your photo it looks straight

There does appear to be a slight bulge at the end but maybe I have ordered the wrong one and the one there before was also wrong because they are exactly the same part .



[Lenny HB]

You definitely have a bulge on the pipe because in your photo it looks straight

Looks straight to me, if there was a bulge the split plastic collar would have a larger gap at the end.



[Swifter]

What diameter is that input pipe into your boiler, as I'm thinking, if the pipe diameter is a standard diameter then do you forget the original fittings, cut the bulge off and go with either a John Guest push fit elbow fitting or maybe a compression to push fit fitting?

Could be a possibility. I would probably ask a plumber to help with that .

^{_{Subscribers  do not see these advertisements}}



[Swifter]

Looks straight to me, if there was a bulge the split plastic collar would have a larger gap at the end.

We are away from the van for the night but if the pipe is straight then I presume I need a different part ?



[Two on Tour]

Could be a possibility. I would probably ask a plumber to help with that .

Where's your pioneering spirit man?



[Landy Andy]

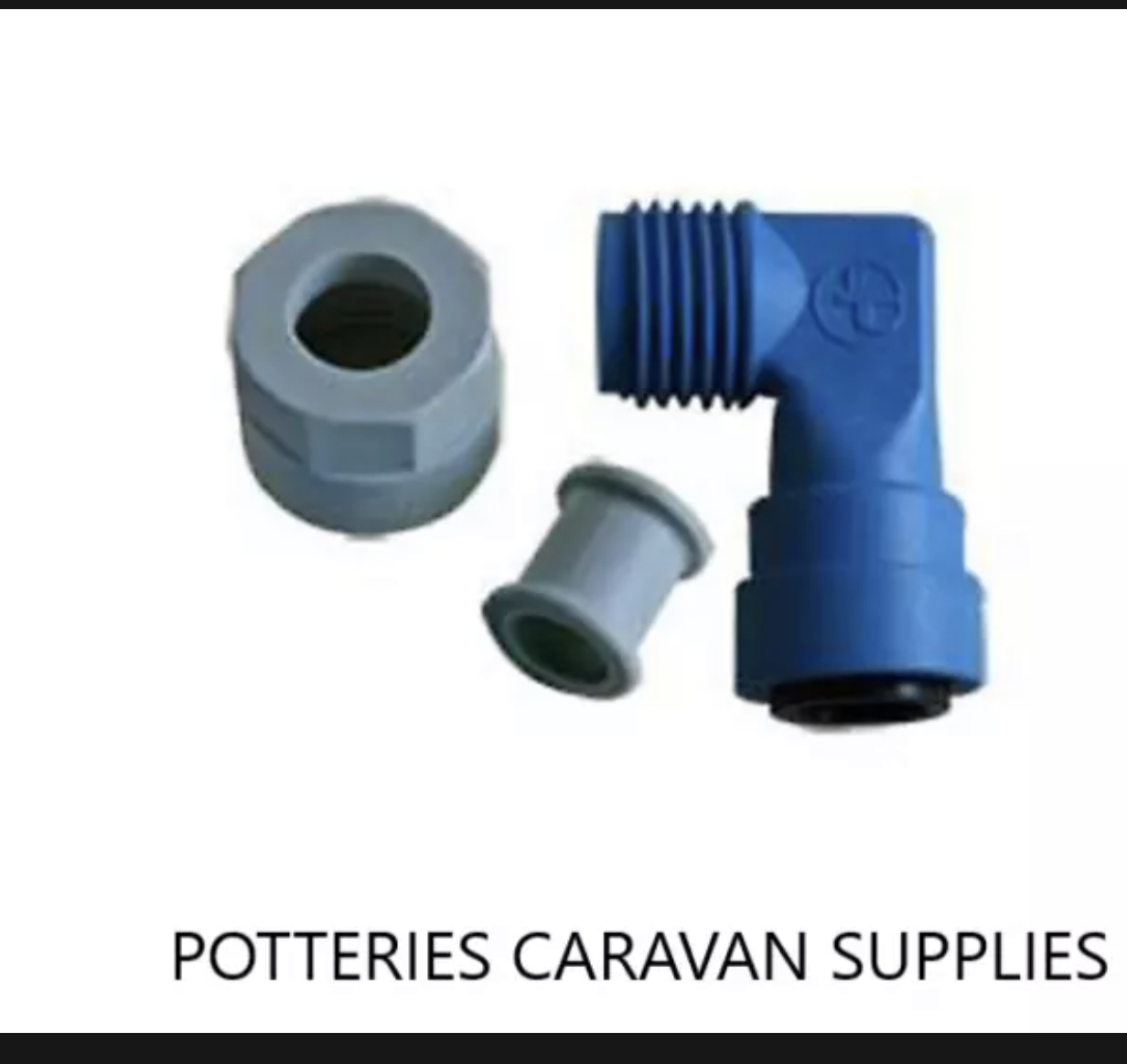

If the pipe is flared at the end you would notice the gap growing in the collar as you slide it over it. To me it looks like a straight pipe. The fitting you would need for this, is similar to the black spigot elbow in your first pic, that is on the towel.

^{_{Subscribers  do not see these advertisements}}



[Swifter]

If the pipe is flared at the end you would notice the gap growing in the collar as you slide it over it. To me it looks like a straight pipe. The fitting you would need for this, is similar to the black spigot elbow in your first pic, that is on the towel.

There must be a Truma part available for this I am guessing ?



[Landy Andy]

I would think they just use something like John Guest 12mm push fittings. Many types available.



[Swifter]

I would think they just use something like John Guest 12mm push fittings. Many types available.

ok thank you .
