Spare wheel hanger fitting (1 Viewer)

AllyMoHo

Free Member
Sep 2, 2019
34
16
Funster No
63,759
MH
A Class Pilote
Exp
I’m a newbie
Hi Guys n Gals
I bought a spare wheel hanger kit for my 2014 Pilote Reference G690 A class on ducato chassis.
currently on my back underneath the MoHo comparing the holes in the chassis to the supplied bits.
Not sure if I have a kit that will do several vehicles!! Anyone done the fitting and has photos of under the vehicle of it fitted.
No instructions provided with the kit. 4 x bolts, 4 x rivet nuts, 2 flanged nuts supplied.
Any help would be appreciated. I have a rivet nut set to fit the unit. Just need a bit of clarification. Cheers in advance.


Attachments

  • 0B073261-A803-4526-A3B2-72DD7D926A52.jpeg
    327.8 KB · Views: 79
OP
AllyMoHo

AllyMoHo

Free Member
Sep 2, 2019
34
16
Funster No
63,759
MH
A Class Pilote
Exp
I’m a newbie

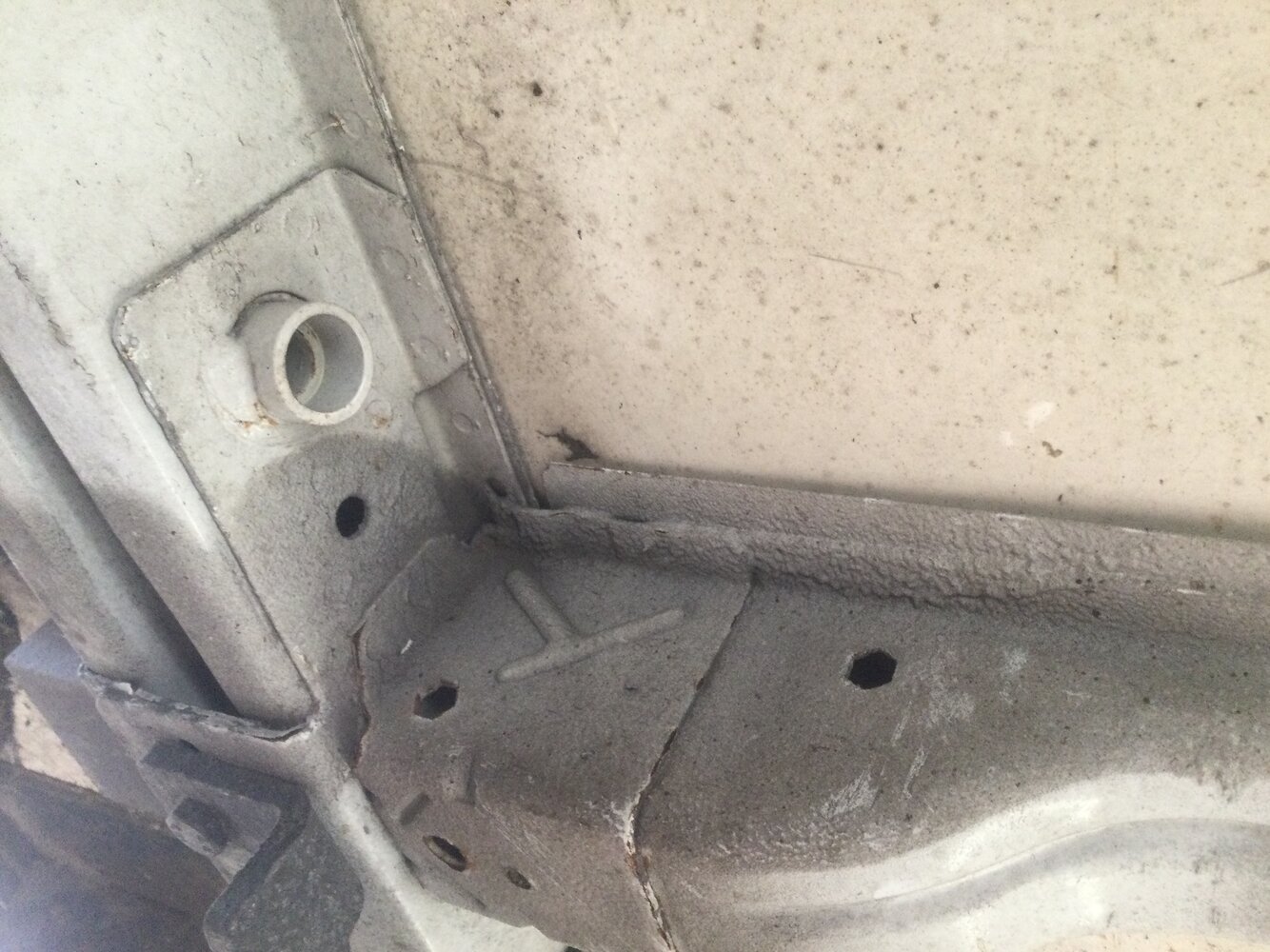

The 3 other brackets are identified with..H20, G20 and J20. These pics are of the cross member behind the rear wheel and the member in front of rear wheels showing the obvious holes for fitting.

Subscribers  do not see these advertisements



Attachments

  • image.jpg
    197.4 KB · Views: 11
  • image.jpg
    216.4 KB · Views: 11
  • image.jpg
    226.5 KB · Views: 11
OP
AllyMoHo

AllyMoHo

Free Member
Sep 2, 2019
34
16
Funster No
63,759
MH
A Class Pilote
Exp
I’m a newbie
Hi Vanderek, thanks for the reply. The top pc seams to match my underside as it is a flat surface. Just gauging the single threaded hole on forward crocs member (rear axle member) looks about M6. Quite a tight curve to the lowering cable isn’t it!! Just need to tap the main threads to clear any unnecessary gunk and then fit rivet nuts.

OP
AllyMoHo

AllyMoHo

Free Member
Sep 2, 2019
34
16
Funster No
63,759
MH
A Class Pilote
Exp
I’m a newbie
So ha ha outer rivnut fitted. The one closest the the chassis won’t allow the rivnut tool in the locate before fitting. Maybe use a steel sleeve through the chassis and fit a long bolt and nut. As the hole in the chassis is hexagonal I should be able to fit a sleeve to prevent crushing the chassis!!


Attachments

  • 3873F504-FF4C-4B92-8BCA-AB538332A0A4.jpeg
    241.8 KB · Views: 18
Jun 16, 2017
234
391
Bridlington
Funster No
49,041
MH
Pilote P650GJ
Exp
Happy to help
Here you go this is on my P650GJ fitted it myself.

Subscribers  do not see these advertisements



Attachments

  • F01BBBD2-A6F4-4C1A-8971-65726C2237D3.jpeg
    153.3 KB · Views: 69
  • AA48CEE6-BD9F-428C-8510-2879D5061FEB.jpeg
    88.5 KB · Views: 67
  • 0D009807-1343-4091-B133-A2DB72EB79E1.jpeg
    149.9 KB · Views: 66
  • 9A63FF30-4F51-44DD-8628-330CAEC2547B.jpeg
    105.4 KB · Views: 61
  • 2A1508A2-3458-4B2D-B8E3-CF5EE1CE35C5.jpeg
    108.6 KB · Views: 64
  • 9B03C067-FC67-4546-B91B-1812265ADBF4.jpeg
    183.1 KB · Views: 65

Whizzo

Free Member
Jan 6, 2019
13
19
Suffolk
Funster No
57,858
MH
Burstner TD690G
Exp
Since 2018
Rather than the rivet nuts you can use M10 x 100mm bolts straight through for the winch mount. it worked a treat for mine. Use Nyloc nuts mind with washers.

May 1, 2015
392
278
Caerphilly
Funster No
36,145
MH
Pilote P650
Exp
Since 2014
I have just bought the kit and I am about to do this. What sort of tool did you use to insert the rivnuts? Some of the holes look very close to side members.
Hi, don't need a specific tool just bolts and washers. If you search on Youtube there a few videos of people fitting them this way. I used the bolts that came with the kit pus an 8mm nut and a washer.

Patrick


voltair1238

Free Member
Mar 19, 2021
2
1
Funster No
79,876
MH
Van conversion
Hi, don't need a specific tool just bolts and washers. If you search on Youtube there a few videos of people fitting them this way. I used the bolts that came with the kit pus an 8mm nut and a washer.

Patrick
Hi Patrick. Thanks for your reply. Yes I have seen those videos, I was just interested in what people had done for this job in real life.
Simon

Jan 27, 2018
1,463
1,151
Northampton
Funster No
52,151
MH
Rapido & Bongone
The hex holes are for hexagonal rivnuts


https://www.ebay.co.uk/sch/i.html?_...eDesc=0&_odkw=mate+hex+++aa+rivnuts&_osacat=0

Subscribers  do not see these advertisements


Apr 18, 2021
119
392
Lincolnshire Wolds AONB, United Kingdom
Funster No
80,489
MH
Sunlight Cliff 540
Exp
Since 2008
Rather than the rivet nuts you can use M10 x 100mm bolts straight through for the winch mount. it worked a treat for mine. Use Nyloc nuts mind with washers.
I've just fitted mine and done exactly the same. Don't know why Fiat don't provide M10 bolts to do it that way, and it's far easier and quicker to fit. As there's no substantial weight associated with the winding gear housing, using nylock nuts and just nipping them up works just fine. The wheel suspension bracket at the centre of the chassis crossmember uses M 8 bolts, and the nuts are already welded inside the box section. I used washers on these, and applied a little bit of thread lock to the bolts as well. Both the 2 x M10 and 4 x M 8 bolts I used were stainless steel.
