Hi All

I have a 2002 Auto-Trail Cheyenne 630. Fiat Ducato 2.8 LWB.
The bottom main Habitation Door Hinge has snapped. I read on here an article regards how to fit a replacement. The problem I have folks is getting a darn hinge !
I contacted O’Leary Motorhome Spares in Hull. He had them in February, but apparently no longer ? I did query with him in February, but was sent to work away by my employer and got the bad news from O’Leary’s yesterday.
I’ve emailed Marcle Leisure to see if they have any.

Has anyone got any ideas please ? I’m looking on eBay.

Thanks,

Mark.

OP
OP
Outdog
Apr 18, 2019
35
18
Basildon in Essex
Funster No
59,988
MH
Hi Top
Exp
Since 2008

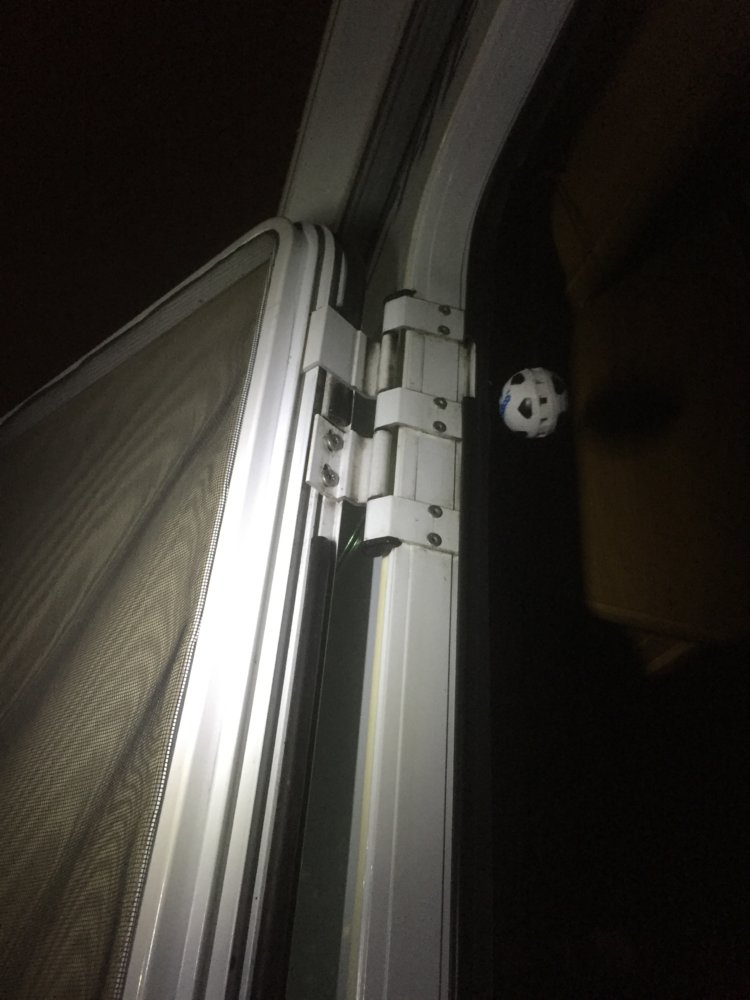

85D8521B-11FE-4F51-9336-79EC1DCEE51F.jpeg 03DD332D-7AFA-40D4-B142-356276AD86F0.jpeg 3FCAD066-CB79-461C-937C-EBCFA6D202F3.jpeg 3FCAD066-CB79-461C-937C-EBCFA6D202F3.jpeg Thank You Steve J and Giz

Subscribers  do not see these advertisements


OP
OP
Outdog
Apr 18, 2019
35
18
Basildon in Essex
Funster No
59,988
MH
Hi Top
Exp
Since 2008
One hinge is the Inner Fly Screen Door and the other for the door attachment. It’s Def not an E Hinge Steve, but well done the advice. Thank You. Apologies Giz, I only joined today and a little bewildered with posting a photo. Thank You for the suggestion of a photo.

OP
OP
Outdog
Apr 18, 2019
35
18
Basildon in Essex
Funster No
59,988
MH
Hi Top
Exp
Since 2008
Oh ..... in February when I emailed O’Leary Motorhome Spares in Hull he said he had the 3 type hinge, but I would need to lose the Fly Screen Door !!!! Not sure what that was about ?


Enword

Free Member
May 20, 2014
1,900
8,000
Devon
Funster No
31,568
MH
Coach Built
Exp
Race van conversion for years
If you can get it off, it may weld ok as a stop gap!

OP
OP
Outdog
Apr 18, 2019
35
18
Basildon in Essex
Funster No
59,988
MH
Hi Top
Exp
Since 2008
☝Great little site. Have their own little Micro Brewery next to the Pub. Toilet visit revealed the unique urinals.

Subscribers  do not see these advertisements



GJH

LIFE MEMBER
Aug 20, 2007
29,450
38,828
Acklam, Teesside, originally Glossop
Funster No
127
MH
None, now sold
Exp
2006 to 2022
The Ellbee five leaf hinges have been obsolete for some years and it appears (from a fairly recent thread) that the three leaf hinges are also obsolete now. I think Ellbee were bought out and no longer produce those types of hinges.
O'Leary's comment about losing the flyscreen is correct (more or less). Of the five leaves, two attach to the flyscreen and three to the main door. As it is one of the two flyscreen leaves which has gone then removing the flyscreen would "fix" the problem of it not being properly attached (I don't think you would have to actually replace the hinge if you go that route because the other parts work OK on the main door).
The other alternatives are to try to source a hinge from a caravan breaker or to have a replacement leaf made by a metal fabricator.

OP
OP
Outdog
Apr 18, 2019
35
18
Basildon in Essex
Funster No
59,988
MH
Hi Top
Exp
Since 2008

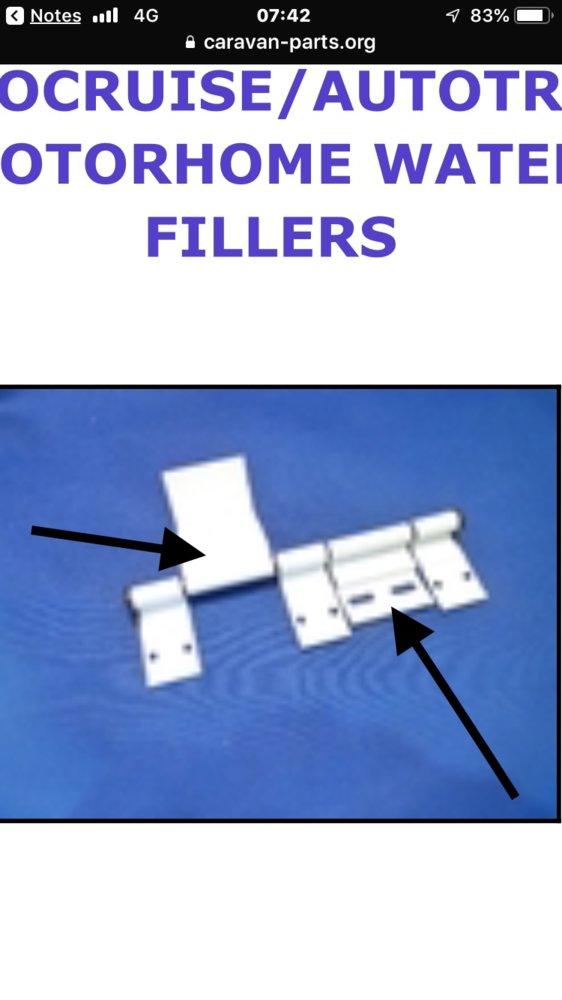

768CB6ED-B744-4A2B-B1A1-46DDD9F63681.png Thank You GJH. Though I’ve found this pic of the Hinge, sadly nothing available.
