Schaudt LR 1218 info

Discussion in 'Solar Power' started by rwhites1, Dec 22, 2014.

  1. rwhites1

    rwhites1 Funster

    Joined:
    Dec 7, 2007
    Messages:
    98
    Likes Received:
    57
    Location:
    west yorkshire
    this might be helpful for someone

    sent this e mail to Allan Evans of www.aandncaravanservices.co.uk/


    Hi Do you have a LR1218 in stock?I have just fitted a 100w solar panel to my LR1218 which is plugged into a EBL99.I am getting about 17v from the solar panel disconnected but when I get it connected there are no extra amps on the analogue displays or volts.The weather at the moment is very overcast and grey skies. On the schaudt LR 1218 there is about 12v from the solar panel terminals when the solar panel is disconnected is this normal.I have used the LR1218 set up for years with a 40w portable solar panel no problem. Do you think it is a LR 1218 that is faulty if so how much is a new one with express

    Got this helpful reply

    Hello
    17v is very low, I would expect nearer 21v open circuit?
    Yes all Solar regulators discharge the battery into the Solar panel, they have 'blocking resistors' which reduce the current drain to just milliamps but don't stop it completely. You will see some voltage if the battery is connected.
    The LR1218 has one of the lowest drains we have seen but you can fit a Voltage sensitive relay on the Panel side to break the connection altogether.
    This time of year and Weather I would not expect much more than about 0.25 A from 100watt. Therefore hard to know if your Panel is faulty or not.
    Suggest you test on a Sunny day and you might see 0.5A around midday?
    If there is a fault and the panel is only putting out 17v, my money would be on the Panel.
    Sorry don't do Solar power any more, we have seen a lot of failures and Panels down to about 50% output after just 2 years.
    Kind regards,
    Allan.

  2. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    13,847
    Likes Received:
    14,498
    Location:
    Leeds the one up North
    Any good solar regulator has diodes built in to prevent discharge back to the panels. I'm surprised they are talking "resistors" I thought they were more knowledgeable.

    • Like Like x 2
  3. dave newell lvs

    dave newell lvs Trader-Vehicle Services

    Joined:
    Oct 31, 2008
    Messages:
    2,509
    Likes Received:
    3,309
    Location:
    Telford, Shropshire

    I agree with Andy, there will be blocking diodes not resistors. At this time of year you are unlikely to see any meaningful current from a 100 Watt panel. I have had dealings with A and N and had issues over some advice they have given to customers which was contradicted by Udo Lang of Schaudt. That's all I will say.

    D.

    • Like Like x 2
  4. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    13,847
    Likes Received:
    14,498
    Location:
    Leeds the one up North

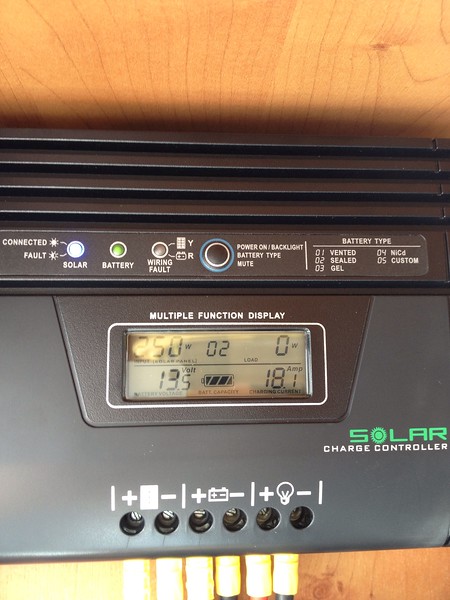

    Also my panels are approaching two years old and no sign of degredation. My 300 watt will only give 1.5 to 2.5 amps just now (normal) but by mid February they are approaching 9amps and in Summer have acheived over 21 amps.

    Edit Exif info from this picture says 15th Feb
    [​IMG]
    MAY
    [​IMG]
    AUGUST
    [​IMG]
    A JULY personal best
    [​IMG]

    Last edited: Dec 22, 2014
  5. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    13,847
    Likes Received:
    14,498
    Location:
    Leeds the one up North
    Did they say anything about you using duct tape to fix your panels ? :xrofl:

    • Like Like x 1
  6. mitzimad

    mitzimad Funster

    Joined:
    Jan 28, 2008
    Messages:
    2,962
    Likes Received:
    3,300
    Location:
    walthamstow east london
    just out of interest techno whats connected to the two right hand terminals on your controller?

  7. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    13,847
    Likes Received:
    14,498
    Location:
    Leeds the one up North
    A 12 volt socket
    [​IMG]

  8. rwhites1

    rwhites1 Funster

    Joined:
    Dec 7, 2007
    Messages:
    98
    Likes Received:
    57
    Location:
    west yorkshire
    • Like Like x 1
  9. rwhites1

    rwhites1 Funster

    Joined:
    Dec 7, 2007
    Messages:
    98
    Likes Received:
    57
    Location:
    west yorkshire
    What I thought Allan ment was there were blocking resistors in the Schaudt LR1218 not the diodes in the solar panels

  10. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    13,847
    Likes Received:
    14,498
    Location:
    Leeds the one up North
    Resistors don't block anything. Diodes are used to ensure current flow in one direction only.
    On a solar panel 1 diode is the cheap option, 2 or 3 diodes on better panels reduce the effects of shading.
    These are besides a regulators own diodes

    Last edited: Dec 22, 2014
    • Like Like x 1
  11. JeanLuc

    JeanLuc Funster

    Joined:
    Nov 17, 2008
    Messages:
    2,782
    Likes Received:
    1,857
    Location:
    Warwickshire
    The following text is copied from the Schaudt LR1218 instruction manual - page 4 (my underlining).

    If the charging voltage of the solar modules is insufficient (e.g. in the dark), an integrated isolation diode prevents the batteries from discharging.

    • Like Like x 2
  12. John Laidler

    John Laidler Funster

    Joined:
    Jan 9, 2013
    Messages:
    8,564
    Likes Received:
    11,544
    Location:
    Plympton, Devon
    The phrase about resisters in the reply is in inverted commas. I take this to mean the person who wrote it knew it was the wrong term but was going to use it anyway. A bit odd but I wouldn't make a big thing about it. The devices may be more correctly termed diodes but they work by offering a high resistance to current flow in one direction, ie they block the flow of current. I have seen the phrase blocking diode used as well.

    And the right hand terminals go to the load.
