6mm cable or 4mm ?

Discussion in 'Solar Power' started by Ambilkate, Oct 16, 2015.

  1. Ambilkate

    Ambilkate Funster Life Member

    Joined:
    Jul 15, 2009
    Messages:
    4,109
    Likes Received:
    6,680
    Location:
    Shropshire
    What cable do you use 6mm or 4 mm does it matter when only doing a 6 to 8 meter run ?we are looking at putting 1x240 solar on van now but can't buy 6mm over the counter only 4mm we can purchase 6mm of ebay but trying to source all items locally and can only get 4 mm :( may have to give up and buy of eBay have all the links via funsters Thankyou but Kate doesn't like to buy over the net and trying to sorce everything today
    Bill

  2. scotjimland

    scotjimland Funster Life Member

    Joined:
    Jul 25, 2007
    Messages:
    28,934
    Likes Received:
    25,574
    Location:
    .
    Hi Bill

    yes.. it does matter ..in a low voltage application, the cable size is critical, not for the load.. but for the losses.

    the cable size is determined by the the length of run, wattage, and acceptable loss ..

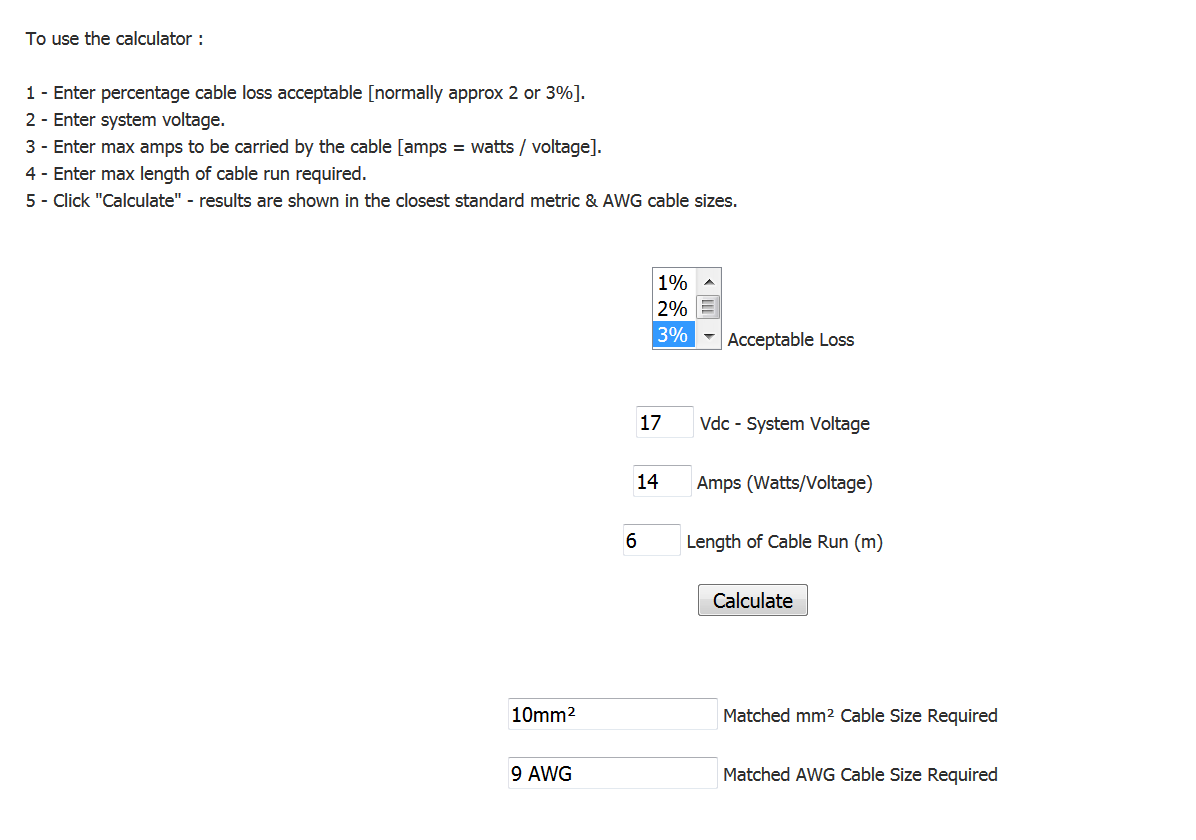

    using the cable sizing tool, the theoretical correct size for that panel for a 6 - 8mt run, allowing for 3% loss, is 10mm

    4mm is too small.. and 6mm will just about do it.. the smaller the cable size the greater the volt drop = the less efficient your panel..

    • Like Like x 2
  3. Gorse Hill

    Gorse Hill Funster

    Joined:
    Feb 2, 2013
    Messages:
    1,397
    Likes Received:
    1,603
    Location:
    Stretford
    Depending on what you calcs are
    Screw fix do 10mm t&e and if using flex 6mm has a similar current carrying capacity , pretty sure B&Q do as well
    I would personally put in place the largest conductor allowing for further expansion
    Whats required and the cost involved on that length is minimal

    • Like Like x 1
  4. Gromett

    Gromett Funster

    Joined:
    Feb 27, 2011
    Messages:
    7,918
    Likes Received:
    13,963
    Location:
    UK
    I always recommend 6mm cable no matter how long the run or how little wattage you are putting on. It also reduces losses. In addition if you want to add additional panels in the future you won't need to upgrade the wiring.

    The cost difference between 4 and 6mm cable is negligible compared to the overall cost.

    I buy my 6, 16 and 25mm cable on ebay and it is very cost effective.

    Auto electricians will have the cables in stock but will be expensive.

    Last edited: Oct 16, 2015
    • Like Like x 1
  5. Freespirit1

    Freespirit1 Read Only Funster

    Joined:
    Sep 3, 2013
    Messages:
    182
    Likes Received:
    251
    Location:
    West Wales
    Hi Bill - just google "Industrial control Panel Manufacturers" in your area - one of those will have the right cable and colour you need - they will even crimp the correct lugs on for you too I expect while you wait.

    • Like Like x 1
  6. Gromett

    Gromett Funster

    Joined:
    Feb 27, 2011
    Messages:
    7,918
    Likes Received:
    13,963
    Location:
    UK
    PS: Remember when using calculators that the voltage at the solar panel side is higher so the current is lower. My panels from memory are about 17V I think. So 240W / 17V = 14Amps.

    • Like Like x 3
  7. Theonlysue

    Theonlysue Funster Life Member

    Joined:
    Sep 14, 2009
    Messages:
    2,951
    Likes Received:
    2,821
    Location:
    Essex
    I don't think that their regulator will allow over 300w re panels.

    • Like Like x 1
  8. scotjimland

    scotjimland Funster Life Member

    Joined:
    Jul 25, 2007
    Messages:
    28,934
    Likes Received:
    25,574
    Location:
    .
    that was the numbers I used


    • Like Like x 3
  9. Ambilkate

    Ambilkate Funster Life Member

    Joined:
    Jul 15, 2009
    Messages:
    4,109
    Likes Received:
    6,680
    Location:
    Shropshire
    Bills measuring up on the roof at the minute this is what is on the back of the panel we saw yesterday solar.jpg

    • Like Like x 1
  10. Gromett

    Gromett Funster

    Joined:
    Feb 27, 2011
    Messages:
    7,918
    Likes Received:
    13,963
    Location:
    UK

    • Like Like x 2
  11. Gromett

    Gromett Funster

    Joined:
    Feb 27, 2011
    Messages:
    7,918
    Likes Received:
    13,963
    Location:
    UK
    That looks like a 48V panel. Make sure your regulator handles 48V in and 12V out. (I am sure you have already)
    AT 52V you would only need 1.5mm cable for 3% losses according to Jim's calculator and 4mm would give you 1% losses. I would still go for the 6mm cable however. Also please check the cable you use is rated at 50V+.

    • Like Like x 1
  12. Gromett

    Gromett Funster

    Joined:
    Feb 27, 2011
    Messages:
    7,918
    Likes Received:
    13,963
    Location:
    UK
  13. laird of Dunstan

    laird of Dunstan Funster Life Member

    Joined:
    Feb 15, 2015
    Messages:
    1,138
    Likes Received:
    3,059
    Location:
    lincolnshire
    Those cable calculators are very helpful , I'd work out the run and have the cables cut to size ,don't use anything that will chew up the end of the cable when cutting, if you buy the lugs online make sure that they are the crimping type ,pop into your local control panel shop ,ask for the workshop and they guys will most likely crimp the ends for you ,its important that the correct tool is use to crimp as it will stamp a number at the same time as the crimp ,ask the guys in the panel shop to put on some heat shrink at the ends.
    I've built the odd control panel in my time ,it's best to use multi strand cable rated to the correct voltage, twin and earth is solid copper and is not suitable for your application :)

    • Like Like x 3
  14. Ambilkate

    Ambilkate Funster Life Member

    Joined:
    Jul 15, 2009
    Messages:
    4,109
    Likes Received:
    6,680
    Location:
    Shropshire
    Thanks everyone back to the drawing board

  15. Freespirit1

    Freespirit1 Read Only Funster

    Joined:
    Sep 3, 2013
    Messages:
    182
    Likes Received:
    251
    Location:
    West Wales
    Snap - all good advice there - and memories of Brand Rex Tri rated eh!

    • Like Like x 1
  16. laird of Dunstan

    laird of Dunstan Funster Life Member

    Joined:
    Feb 15, 2015
    Messages:
    1,138
    Likes Received:
    3,059
    Location:
    lincolnshire
    I started off as an apprentice electrical fitter on flameproof, explosion proof ,HV and LV switchgear , I've built untold numbers of control panels :D
    oh yes we know what tri rated cable looks like :D

    • Like Like x 1
  17. Judge Mental

    Judge Mental Funster Deceased RIP

    Joined:
    Sep 2, 2009
    Messages:
    6,782
    Likes Received:
    6,034
    Location:
    Sarth London
    and I have installed them in another life(y)

  18. laird of Dunstan

    laird of Dunstan Funster Life Member

    Joined:
    Feb 15, 2015
    Messages:
    1,138
    Likes Received:
    3,059
    Location:
    lincolnshire
    "Laughing" I'm looking at one right now with an old satchwell bms system ,been there to judge ,built them,installed them ,tested them ,commissioned the poxy things :)

  19. Judge Mental

    Judge Mental Funster Deceased RIP

    Joined:
    Sep 2, 2009
    Messages:
    6,782
    Likes Received:
    6,034
    Location:
    Sarth London

    I remember now!....your ones were Rubbish!lol Still have nightmares regards wrestling with monster armoured cables:)

  20. laird of Dunstan

    laird of Dunstan Funster Life Member

    Joined:
    Feb 15, 2015
    Messages:
    1,138
    Likes Received:
    3,059
    Location:
    lincolnshire
    Oh yes :) bodgit and scarper control panels (y)

    • Like Like x 1
