Wago Winsta 771 Connectors Used In Hymer's

Discussion in 'Tech/Mech General' started by Lenny HB, Apr 29, 2015.

  1. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639

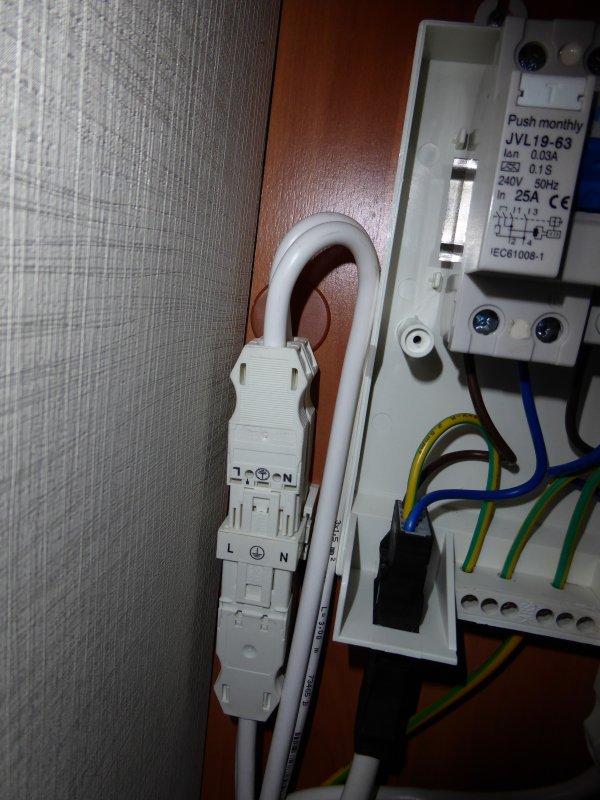

    Trying to find a supplier of the Wago Winsta 771 Series connectors Hymer use for their mains wiring.
    Drawn a complete blank anyone know of a source?

    P1000206.JPG P1000207.JPG

  2. rb62

    rb62 Funster

    Joined:
    Nov 5, 2013
    Messages:
    736
    Location:
    Shropshire
    Ratings:
    +12,342
  3. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    Thanks, Farnell only do the 770, I spent hours trolling the net including German Google, hadn't turned up that Dutch company, that would sort out the connectors just need to see if I can find the connector block on their site. P&P is a bit dear they charge €18.15 to deliver to Belgium.

  4. gus-lopez

    gus-lopez Funster

    Joined:
    Aug 18, 2014
    Messages:
    6,874
    Location:
    Lorca,Murcia,Spain
    Ratings:
    +17,869
    • Like it Like it x 1
  5. Chipster

    Chipster Funster Life Member

    Joined:
    Oct 15, 2013
    Messages:
    497
    Location:
    East Midlands
    Ratings:
    +431
    Lenny. Did you have any luck locating these connectors? I could do with a couple myself. I have mailed Wago at Rugby and waiting on a reply but wondered if you'd had any luck.

  6. pappajohn

    pappajohn Funster Life Member

    Joined:
    Aug 26, 2007
    Messages:
    31,258
    Location:
    YO11 2BD
    Ratings:
    +23,600
    • Like it Like it x 1
  7. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    I found some in the end, I wanted to break into the Hymer loom so I could put it back as standard if needed. If I hadn't of found them I would have just cut the cables.
    The Click ones the Male/Female were the wrong way round for what I wanted , I would have had live on the male pins.

  8. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    Wago are useless gave me the name of a stockist that doesn't stock the 771.

    Found RS stock them with cable wasn't quite sure is they were the right one took a chance and they were.

    Link to RS

  9. Chipster

    Chipster Funster Life Member

    Joined:
    Oct 15, 2013
    Messages:
    497
    Location:
    East Midlands
    Ratings:
    +431
    Sound job. Thanks! I've got a spare way on the cluster next to the Electroblock and I want to put an additional socket in the back. This way would be the neatest.

  10. Chipster

    Chipster Funster Life Member

    Joined:
    Oct 15, 2013
    Messages:
    497
    Location:
    East Midlands
    Ratings:
    +431
    For information, got this back from Wago.-

    "The WAGO Winsta 770 series is the plug and sockets or the 771 series is the leads with either plugs or sockets."


    They have an online shop too.

  11. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    Wish I had known that, the plugs in my van have "771" moulded on them so I assumed it was a different range, would have saved 10 quid.

  12. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    14,419
    Location:
    Leeds the one up North
    Ratings:
    +18,944
    £6 ebay
    [​IMG]

  13. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    Makes it easy once you know the 770 & 771 are compatible.:)
    No problem getting 770, I was looking for 771's

  14. Techno

    Techno Funster Life Member

    Joined:
    Jul 28, 2010
    Messages:
    14,419
    Location:
    Leeds the one up North
    Ratings:
    +18,944
    These connectors and leads of various lengths are available from CEF. We use them in shop or office lighting to string modules together. Plug & play

  15. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    I knew they were lighting connectors, got them from RS in the end.

  16. Chipster

    Chipster Funster Life Member

    Joined:
    Oct 15, 2013
    Messages:
    497
    Location:
    East Midlands
    Ratings:
    +431
    There is 2 versions, mini and midi. One 16A the other 25A.

  17. Lenny HB

    Lenny HB Funster

    Joined:
    Oct 18, 2007
    Messages:
    9,490
    Location:
    On the coast in West Sussex
    Ratings:
    +13,639
    The 770 &771 plugs & sockets are rated at 20 amps the pre wired ones use 1.5mm sq cable therefore 16 amps.
