Dumb blonde please .... why would a flat panel get less power at mid-day, when the sun is directly overhead? o_O
If the sun is directly overhead then a flat panel is ideal but I was referring to times of the year when the sun is not directly overhead. My fault for spelling "low" as "aow". :)


Fletton

Free Member
Oct 19, 2014
1,531
2,501
Lincolnshire, UK
Funster No
33,882
MH
Knaus Sky I Plus 650LG
Exp
First MoHo - April 2015
I saw one last week on a Mini Winni...
Parked up at Riverside Gardens nr Retford-ish..

OP pressed a button just inside door... panel came up like a sat dish and faced and tracked the sun until he pressed button and it folded flat again...

I was tempted to take a pic/vid to post on ere at the time.... but didn't in end.

Subscribers  do not see these advertisements



eddie

LIFE MEMBER
Oct 4, 2007
8,122
41,030
Taunton Somerset
Funster No
540
MH
RV
Exp
since 1989
Has anybody fitted a panel to their roof that can be tilted? I'll be fitting a 150w panel when we get back, and I want it to be of use in Spain during September and October when the sun starts getting lower. We usually park with the awning facing west so we get good afternoon sun therefore the back of the van usually faces south.
I'm thinking maybe put a piano hinge at the back of the panel so the front lifts up 45 degrees. The front of the panel would maybe sit on aluminum 20 x 40 'unistrut' and have 2 scallop knobs to release it.

Anybody got thoughts or experience on this?
Like this?


two

Aug 4, 2011
4,901
4,560
West Midlands
Funster No
17,624
MH
A-Class Fiat
Oyster also make them. And one that doubles as a satellite dish after dusk.

Subscribers  do not see these advertisements



golly

LIFE MEMBER
Aug 16, 2009
2,001
69,092
Land of the Prince Bishops
Funster No
8,011
MH
HYMERCAR PVC
Exp
since August 2009
Years ago on the forum, a Funster had a project to make a tracking solar panel using a sat dish motor,gps etc. Cant remember who it was or what the outcome was, anyone remember ?


eddie

LIFE MEMBER
Oct 4, 2007
8,122
41,030
Taunton Somerset
Funster No
540
MH
RV
Exp
since 1989
That looks like the very model I saw.... even installed in same place...
We have one on our exhibition unit so people often see it at shows. The pictures on the link were of our last camper, which had one on as well


rcscs

Free Member
Oct 5, 2018
5
2
Funster No
56,556
MH
Still thinking about it..
Exp
Newbie

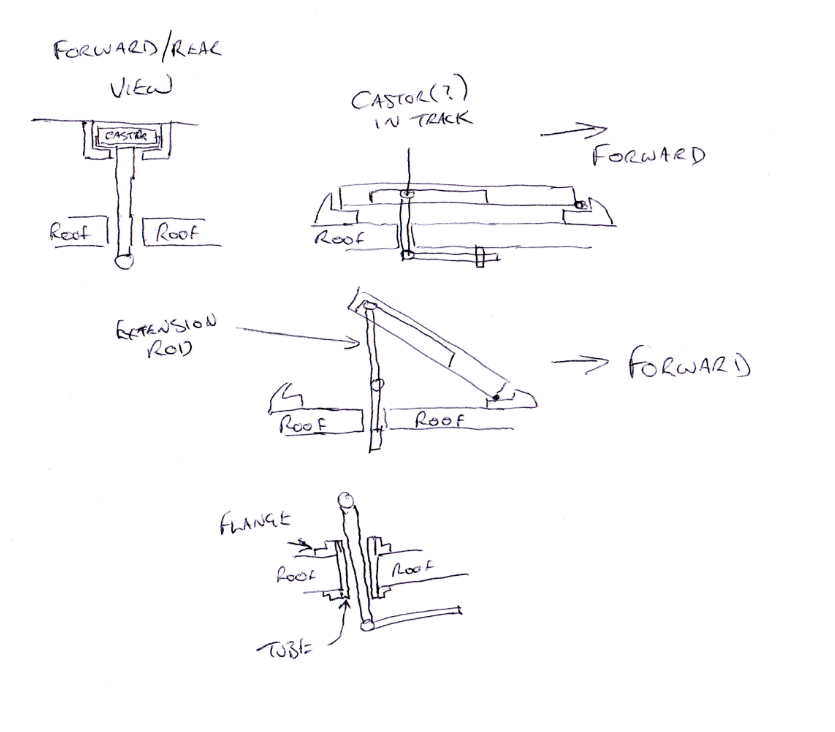

Apologies for resurrecting an old thread - but was reading through this post and thought of this...

Panel installed across (long edge) the vehicle roof. Hinge at the front of the vehicle only.
Hole/tube in roof to interior - aligned centre of long width of panel.
Hinged rod (think curtain rod with a hinge - but something stronger probably) - has 'castor' at one end which sits in a track mounted to the underside of the SP. Track would need to be a 'channel' so that the caster could 'hold down' the rear of the panel when shut.
Would probably put some chain/wire strops to the rear corners of the panel also.
Vehicle would need to be parked facing sun to get benefits - push up on rod from inside van will tilt the panel forwards, some sort of locking latch would be required inside to hold 'rod' in place when in up position. On closure (travelling) rod is hinged at 90 degrees and clipped to ceiling.
Force of wind while traveling should keep panel down - but rod would help to stop the rear end 'bouncing'.
If tube through roof is fitted with flanges and rubber grommits water ingress should be minimal (?) as under panel when travelling (and when stopped and tilt).

Back of the envelope stuff - but interested to hear what anybody thinks...

R.





OP
OP
Richard n Ann
Jan 19, 2014
9,319
24,569
Derbyshire
Funster No
29,757
MH
Elddis Accordo 105
Exp
since 2014
Apologies for resurrecting an old thread - but was reading through this post and thought of this...

Panel installed across (long edge) the vehicle roof. Hinge at the front of the vehicle only.
Hole/tube in roof to interior - aligned centre of long width of panel.
Hinged rod (think curtain rod with a hinge - but something stronger probably) - has 'castor' at one end which sits in a track mounted to the underside of the SP. Track would need to be a 'channel' so that the caster could 'hold down' the rear of the panel when shut.
Would probably put some chain/wire strops to the rear corners of the panel also.
Vehicle would need to be parked facing sun to get benefits - push up on rod from inside van will tilt the panel forwards, some sort of locking latch would be required inside to hold 'rod' in place when in up position. On closure (travelling) rod is hinged at 90 degrees and clipped to ceiling.
Force of wind while traveling should keep panel down - but rod would help to stop the rear end 'bouncing'.
If tube through roof is fitted with flanges and rubber grommits water ingress should be minimal (?) as under panel when travelling (and when stopped and tilt).

Back of the envelope stuff - but interested to hear what anybody thinks...

R.




View attachment 260103
Don't like that at all... Would be very hard to make it sturdy whilst erected, the hinged rod would need to lock straight. You'd need solid fixings into the ceiling for windy days, is that possible? But the worst feature - it would drip water in every time it rains! :eek:


Silver-Fox

LIFE MEMBER
Sep 5, 2014
9,234
28,694
Cheltenham Spa
Funster No
33,201
MH
Rapido
Exp
im a not so newbie
You could install a worm gear system with left and right hand threads, gear each side of centre along with attached arms.
Handle operated similar to awning setup.
Being a mechanical system it would lock into position both upright and when flat.


two

Aug 4, 2011
4,901
4,560
West Midlands
Funster No
17,624
MH
A-Class Fiat
Interesting idea, with room for improvement.
But, before I drill through the roof, I'd experiment to see what the gains are from a tilted panel over a flat one. The theory's great but I'm not so sure in practise.
There have been tracking panels for sale from Alden and Oyster but they seem to have disappeared. It may well be because of their cost. For the price of one of those things you could simply have a larger array of flat panels. It might otherwise have been due to lack of effectiveness, or something else, but I've not seen credible reports from such owners.

Subscribers  do not see these advertisements


OP
OP
Richard n Ann
Jan 19, 2014
9,319
24,569
Derbyshire
Funster No
29,757
MH
Elddis Accordo 105
Exp
since 2014
Interesting idea, with room for improvement.
But, before I drill through the roof, I'd experiment to see what the gains are from a tilted panel over a flat one. The theory's great but I'm not so sure in practise.
There have been tracking panels for sale from Alden and Oyster but they seem to have disappeared. It may well be because of their cost. For the price of one of those things you could simply have a larger array of flat panels. It might otherwise have been due to lack of effectiveness, or something else, but I've not seen credible reports from such owners.
Believe me the gains are big when the sun is low in the sky. Flat, my 150w panel will typically charge at 2 amps, but put it up to 40° and it shoots up to 9 amps which is virtually full power.

When I did the tests before I installed the main panel I got 2 amps out of my 40w panel in February. The sun was so low in the sky I had to put it on a table so the sun hit it.


Abacist

LIFE MEMBER
Oct 15, 2013
3,648
10,041
Devon
Funster No
28,581
MH
N & B Tag Axle
Exp
since 2013
I should think the will consume all the power that the panels produce!

Impressive though. Is the Motorhome on a turntable to rotate with the sun?

Subscribers  do not see these advertisements


Aug 6, 2013
11,941
16,527
Kendal, Cumbria
Funster No
27,352
MH
Le-Voyageur RX958 Pl
Exp
since 1999
There should be a few old Oyster sat units around by now. Even with only manual control of the two axis motors one would make a useful tilt and rotate mechanism.

Oct 29, 2016
4,469
51,764
Surrey
Funster No
45,842
MH
Carthago C Tourer
Exp
Motor Homing 5 years, caravan previously
Picture above found on internet from
At only £23.95
Or is that solution too easy or simplistic?
If mounted on roof near rear Heki roof light then one could reach out and raise/lower the panel without getting up on the roof from outside.
Les

Last edited:

Minxy

LIFE MEMBER
Aug 22, 2007
32,488
66,006
E Yorks
Funster No
149
MH
Carthago Compactline
Exp
Since 1996, had Elddis/Swift/Rapido/Rimor/Chausson MHs. Autocruise/Globecar PVCs/Compactline i-138
Picture above found on internet from
At only £23.95
Or is that solution too easy or simplistic?
If mounted on roof near rear Heki roof light then one could reach out and raise/lower the panel without getting up on the roof from outside.
Les
That's EXACTLY what I was thinking earlier but I couldn't be bothered to read back through the thread to see if I'd said it before! :D2

Subscribers  do not see these advertisements


Apr 27, 2008
11,788
13,942
Eastbourne East Sussex
Funster No
2,327
MH
Hymer low profile
Exp
Since 1972
Help a

Dumb blonde please .... why would a flat panel get less power at mid-day, when the sun is directly overhead? o_O
The sun is only directly overhead at midday at the equator all the year round or between the tropics of Cancer and Capricorn some of the time. Never in Europe.


OldAgeTravellers

LIFE MEMBER
Jan 6, 2014
1,191
1,361
Telford, UK
Funster No
29,599
MH
A Class
Exp
Since 1970
I know this an old thread but still a good idea. I recently discovered that the cable lead through for my panels had come unstuck, a bit worrying because the same Sikoflex was used for the panels. But it was under the panel so I had to drill out the pop rivets to lift the panel so as to re fasten the plastic units. I decided that as under the panels was full of leaves and filthy I would hinge it on the door side which we always face to the sun. So I could clean under there regularly and work out a tilting system. Unfortunately I only had steel hinges so have to source some stainless or brass ones. But when done the gain was amazing, late afternoon mid September in the South of France went from 5 amp to 12 amp that is reading the output from my Bluetooth Victron meter with the other two panels covered. All I have to do now is find a good fixing system when down and an adjustable prop system. @Richard and Ann where did you get your hinges?
Steve

Subscribers  do not see these advertisements


OP
OP
Richard n Ann
Jan 19, 2014
9,319
24,569
Derbyshire
Funster No
29,757
MH
Elddis Accordo 105
Exp
since 2014
I know this an old thread but still a good idea. I recently discovered that the cable lead through for my panels had come unstuck, a bit worrying because the same Sikoflex was used for the panels. But it was under the panel so I had to drill out the pop rivets to lift the panel so as to re fasten the plastic units. I decided that as under the panels was full of leaves and filthy I would hinge it on the door side which we always face to the sun. So I could clean under there regularly and work out a tilting system. Unfortunately I only had steel hinges so have to source some stainless or brass ones. But when done the gain was amazing, late afternoon mid September in the South of France went from 5 amp to 12 amp that is reading the output from my Bluetooth Victron meter with the other two panels covered. All I have to do now is find a good fixing system when down and an adjustable prop system. @Richard and Ann where did you get your hinges?
Steve
Wickes. Stainless ball bearing mmm :love:

Only about a fiver a pair.


Join us or log in to post a reply.
