My DIY SOG for under a tenner. (1 Viewer)

funflair

LIFE MEMBER
Dec 11, 2013
16,423
23,123
Guisborough
Funster No
29,351
MH
MORELO palace
Exp
since 2012
I went to the fish tank shop for an activated charcoal filter to cut up instead of the proper SOG thing and that was about £8 granted I might get two out if i'm lucky.

looks like you have done a nice job.


irnbru

LIFE MEMBER
Jun 27, 2013
12,670
28,420
Glasgow
Funster No
26,684
MH
Benimar 264
Exp
9 yrs
I need some step by step instructions to go beside each photo for me to follow this. Not too technically minded.
Thanks

Subscribers  do not see these advertisements


OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
I need some step by step instructions to go beside each photo for me to follow this. Not too technically minded.
Thanks

I'll see what I can do, but it might be next week as we are off to Peterborough show tomorrow. However if you aren't technically minded, you probably will not have a hole saw to cut the big hole.

I soldered the wires in as well, and used a stiff bit of wire as a 'fish wire' to route the wires from the fan, underneath the casing to the side for connection.

Subscribers  do not see these advertisements


Last edited:
OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
Do the replaceable filters do the same thing?

I'm not sure about the whole filter thing anyway. I nearly didn't bother with one at all. I think the 'proper ones' are activated charcoal and so I bought a piece of activated charcoal mat off ebay. It is enough to cut out 6 pieces, but as it is only 1/2" thick, I used two pieces, leaving me another two changes of double thickness, should I ever change it!

Maybe someone else will know what the filter effect is.

Martin


hilldweller

LIFE MEMBER
Dec 5, 2008
621
36,103
Macclesfield
Funster No
5,089
MH
Zilch Mk1
Exp
From Aug 2007
Proper job.

You got lucky with that built in motor housing.

I know SOG kits look expensive but everything fits beautifully and real quality plastic that looks made to last.


Sidney

Free Member
Jan 27, 2013
1,334
867
Stamford
Funster No
24,452
MH
Benimar Mileo 282
Exp
Seven plus years
I have the same Khazi as you. The SOG kit (type F) for this WC is quite rudimentary and makes no use of the housing designed to accommodate the fan and alike.




The Thetford kit on the other hand is quite extensive and changes the top control PCB which allows you to manually switch the fan on or off (as well as automatically switching on for a timed period when you use the flush) and reed (level indicator) as well. No flexible pipes, no messing about when you empty the thunderbox...



I think you solution is better that the SOG

Subscribers  do not see these advertisements


Jan 22, 2013
1,024
1,965
London SE
Funster No
24,385
MH
A class Adria vision I707
Exp
since 1971
On my C250 that has a similar set up, the fan draws air from the cassette when switched on at the control panel, there is a non return valve in the top of the cassette that allows air into the cassette,
I improved my air throughput by adding an additional fan lower down in the outlet that comes on automatically by triggering a PIR as you enter the WC,


Techno

LIFE MEMBER
Jul 28, 2010
15,474
19,656
Leeds the one up North
Funster No
12,905
MH
Rapido 7090F 3 litre 160
Exp
May 2010
that's what I thought, but wasn't sure how the OPs worked.. ..
If the cassette seal is tight against the toilet bowl then it won't take the smell away at all and the contents won't break down faster like it does when fresh air is drawn through.

Subscribers  do not see these advertisements



Puddleduck

LIFE MEMBER
Jan 15, 2014
11,541
36,203
Scottish Borders
Funster No
29,703
MH
SunLiving Lido M45SP
Exp
On and off for many years.
I need some step by step instructions to go beside each photo for me to follow this. Not too technically minded.
Thanks

I'll see what I can do, but it might be next week as we are off to Peterborough show tomorrow. However if you aren't technically minded, you probably will not have a hole saw to cut the big hole.

If you need a hole saw we have one you can use Sandra...... means you will have to come to us for a weekend though :)

OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
Surely this is not the same? A SOG draws air through the cassette but yours looks like it just draws air through the cassette locker?

No, the cassette has a vent which goes down to the bottom where the rubber ring is shown in the picture. Air is drawn down into the cassette and down through the filter and fan underneath the floor, but only when the blade is opened, thus not allowing 'foul' air inside the toilet compartment. The vent in the cassette is quite clever and only opens when it is inserted in the compartment. If you look at the underneath of the cassette you will see it, (if your cassette is the same as mine). I think it needs the vent so that it doesn't blow up due to expansion, probably of gasses. lol

Martin

OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
I looked at the Thetford way, but apart from it being expensive, I think you have to switch it on automatically, which I didn't want. I know some people have done a similar mod to me but use a switch, which again I didn't want.

I would comment if I could see the OP's pictures!

If you sign up to dropbox (it's free), then you can see the pictures. I think it would be a big job to upload them all here. Sorry.

Martin

Subscribers  do not see these advertisements



Sidney

Free Member
Jan 27, 2013
1,334
867
Stamford
Funster No
24,452
MH
Benimar Mileo 282
Exp
Seven plus years
If the cassette seal is tight against the toilet bowl then it won't take the smell away at all and the contents won't break down faster like it does when fresh air is drawn through.
On the C260 there is a tube that goes from the bottom of the cassette to the vent on the top. When the cassette is inserted into the housing it opens the vent. The fan in the base of the housing draws air from the cassette and fresh air goes in via the vent.

The Thetford version switches the fan on when you operate the flush. It then runs for a timed period and switches off. You can switch it off earlier by pressing the button.

Equally you can put the fan on, do what ever suits your mood, and then flush and the fan switches off after a timed period or you can switch it off manually.

The foam ring you can see in the OP images ensures a good seal between the tube and the fan housing. A replaceable filter sits on top of the fan. I plan to cut this open and put in some new activated charcoal rather than buy a new one every six weeks!


Sidney

Free Member
Jan 27, 2013
1,334
867
Stamford
Funster No
24,452
MH
Benimar Mileo 282
Exp
Seven plus years
Either way the OP solution is far better than the SOG which costs MORE than Thetford's own solution.

Nov 18, 2011
10,963
31,709
Funster No
18,938
I looked at the Thetford way, but apart from it being expensive, I think you have to switch it on automatically, which I didn't want. I know some people have done a similar mod to me but use a switch, which again I didn't want.



If you sign up to dropbox (it's free), then you can see the pictures. I think it would be a big job to upload them all here. Sorry.

Martin
not that big a job just put on desk top and up load

Subscribers  do not see these advertisements


OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
Just a quick update, it seems to be working well. No odours in the toilet compartment. Will see what it's like when it's getting full.

Martin

OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
Problems uploading pictures.

I can only upload 10 at a time, and they don't seem to upload in numerical order.

Last edited:
OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012

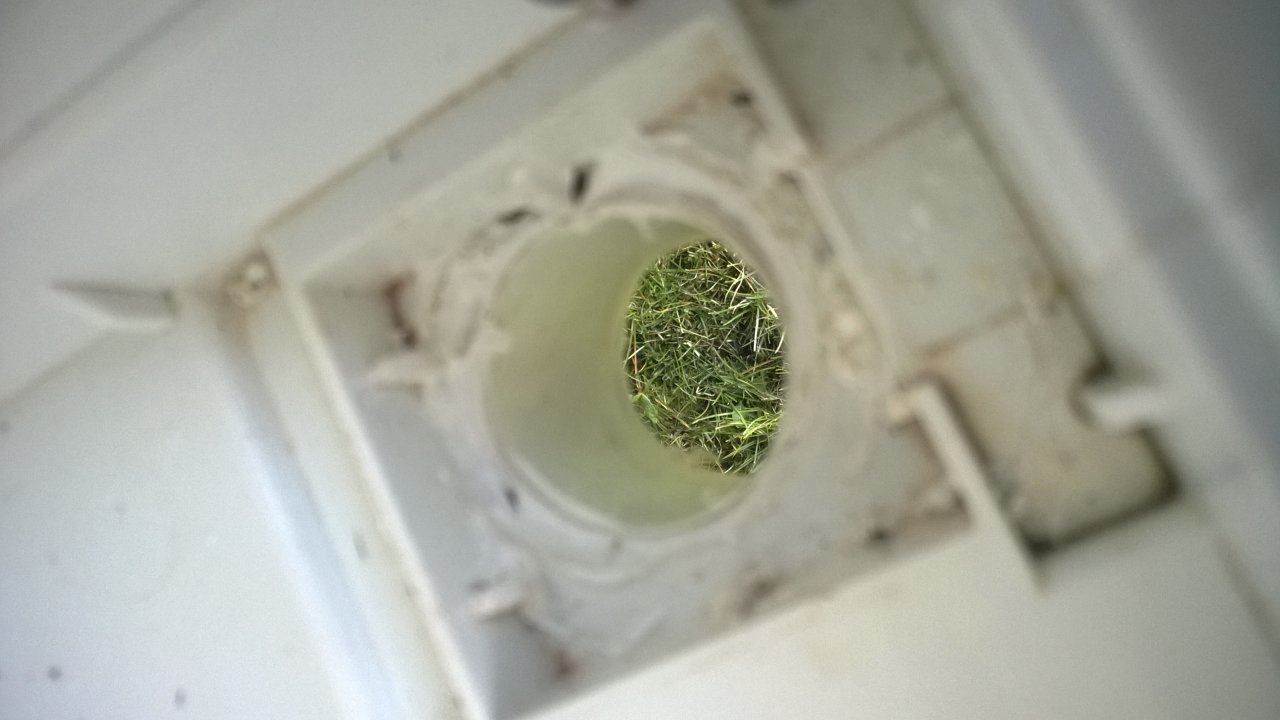

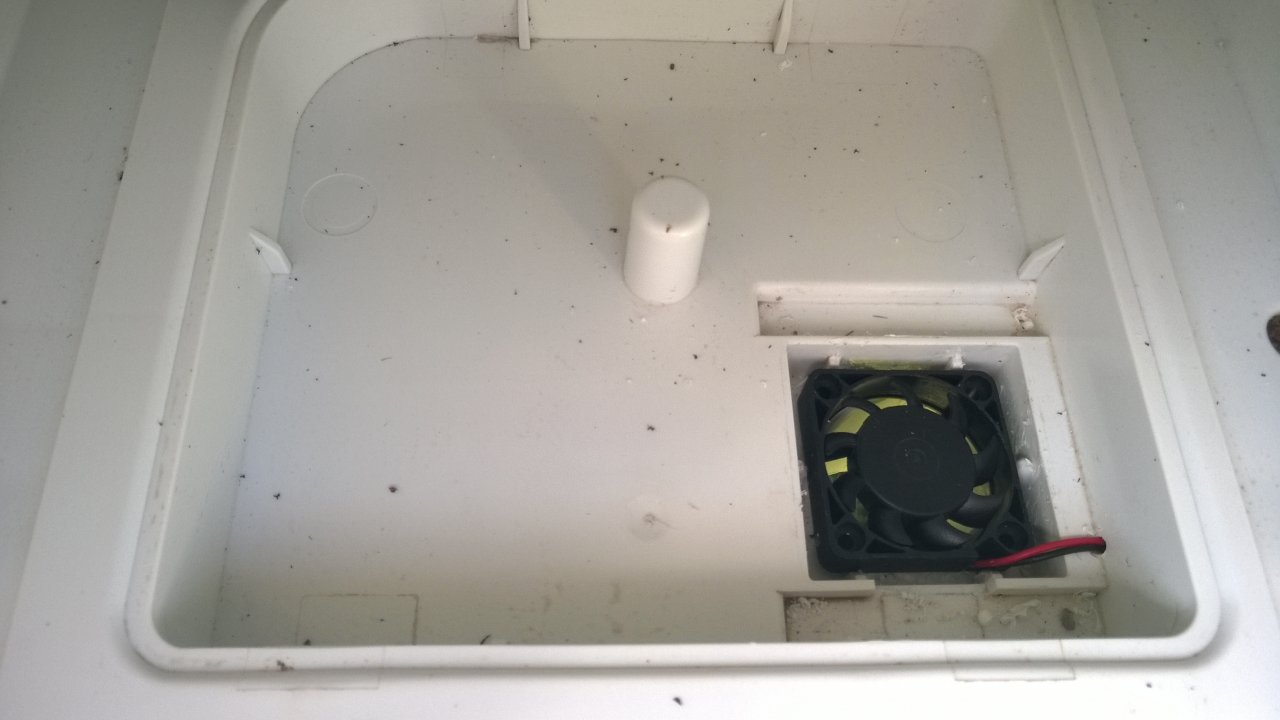

Pictures as requested - only 10 at a time though.

The rest to follow later - it's past my bedtime now!

Subscribers  do not see these advertisements



Attachments

  • WP_20150408_001.jpg
    67.6 KB · Views: 114
  • WP_20150408_002.jpg
    65.9 KB · Views: 100
  • WP_20150408_003.jpg
    79.1 KB · Views: 99
  • WP_20150408_004.jpg
    74.5 KB · Views: 93
  • WP_20150408_005.jpg
    43.6 KB · Views: 99
  • WP_20150408_006.jpg
    34.7 KB · Views: 94
  • WP_20150408_006a.jpg
    94.9 KB · Views: 95
  • WP_20150408_006b.jpg
    87.7 KB · Views: 100
  • WP_20150408_007d.jpg
    76.4 KB · Views: 100
OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012
The plastic bracket holding the switch was made from a corner of a piece of square section drain pipe I found, wedged into place with a couple of strips of it, and 'gunked in' with some bath sealant. The foam is only 1/2" thick, so I used two pieces. The sheet is just the right size to cut out 6, so I have enough for another 2 changes. The rubber sealing ring was made from a bit of old wet suit.


Attachments

  • WP_20150408_009.jpg
    76.3 KB · Views: 85
  • WP_20150414_012.jpg
    244.6 KB · Views: 82
  • WP_20150414_013.jpg
    88 KB · Views: 78
  • WP_20150414_014.jpg
    89.9 KB · Views: 77
  • WP_20150414_015.jpg
    89.2 KB · Views: 74
  • WP_20150414_015a.jpg
    83.9 KB · Views: 76
  • WP_20150414_016.jpg
    126.5 KB · Views: 78
  • WP_20150414_017.jpg
    84.7 KB · Views: 74
  • WP_20150414_018.jpg
    142.4 KB · Views: 74
  • WP_20150414_019.jpg
    75.8 KB · Views: 74
Nov 6, 2013
3,186
168,640
East Sussex
Funster No
28,906
MH
Hymer B574DL
Exp
7 years (tugger for 20)
I have the same Khazi as you. The SOG kit (type F) for this WC is quite rudimentary and makes no use of the housing designed to accommodate the fan and alike.


The Thetford kit on the other hand is quite extensive and changes the top control PCB which allows you to manually switch the fan on or off (as well as automatically switching on for a timed period when you use the flush) and reed (level indicator) as well. No flexible pipes, no messing about when you empty the thunderbox...



I think you solution is better that the SOG

Hi @Sidney Do you have any idea of the price of this kit or where I can buy one?
If it is very expensive I will do the DIY job (y)

Subscribers  do not see these advertisements


Jul 29, 2013
7,585
11,621
Salisbury
Funster No
27,215
MH
Hymer B678DL A class
Exp
since 2011
Our Exsis came with a SOG already fitted and the hose plugs into the floor in front of the tank you just unplug before removing the tank.
I do like the way you have done yours but I think the idea of the filter is that it is outside the van in the SOG outer housing thus any smells are outside when filter gets clogged.

Nov 6, 2013
3,186
168,640
East Sussex
Funster No
28,906
MH
Hymer B574DL
Exp
7 years (tugger for 20)
Thanks for this @LaMB (y)
I have now got all the bits and intend to fit them in the next couple of weeks.
How did you drill the hole through the floor. Did you go from underneath? If so how did you get the position right?

Thanks
John.

OP
LaMB

LaMB

Free Member
Jun 15, 2012
69
51
Boston
Funster No
21,486
MH
Frankia i 640 SD
Exp
Since 2012

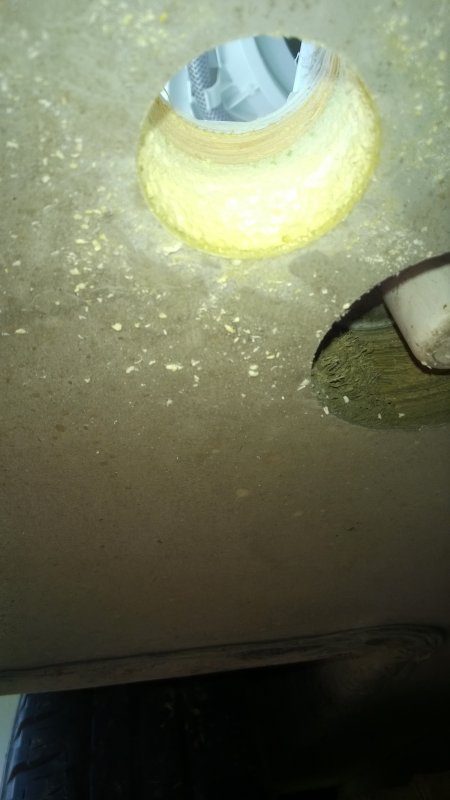

Yes John. I did drill the big hole from underneath as I didn't have a right angle fitting for my electric drill, and of course there isn't a lot of room. I made a pilot hole from the top with a thin sharp screwdriver, using it as a drill. Mine wasn't exactly central, but near enough as you can see from the picture.

Martin
