I thought members might be interested in the "led" fuses I have fitted in my MH. These are available in any good motorcar accessory store, in my case I got them sent from UK via father in law who went to Halfords.

The picture below is of standard fuse and led fuse.

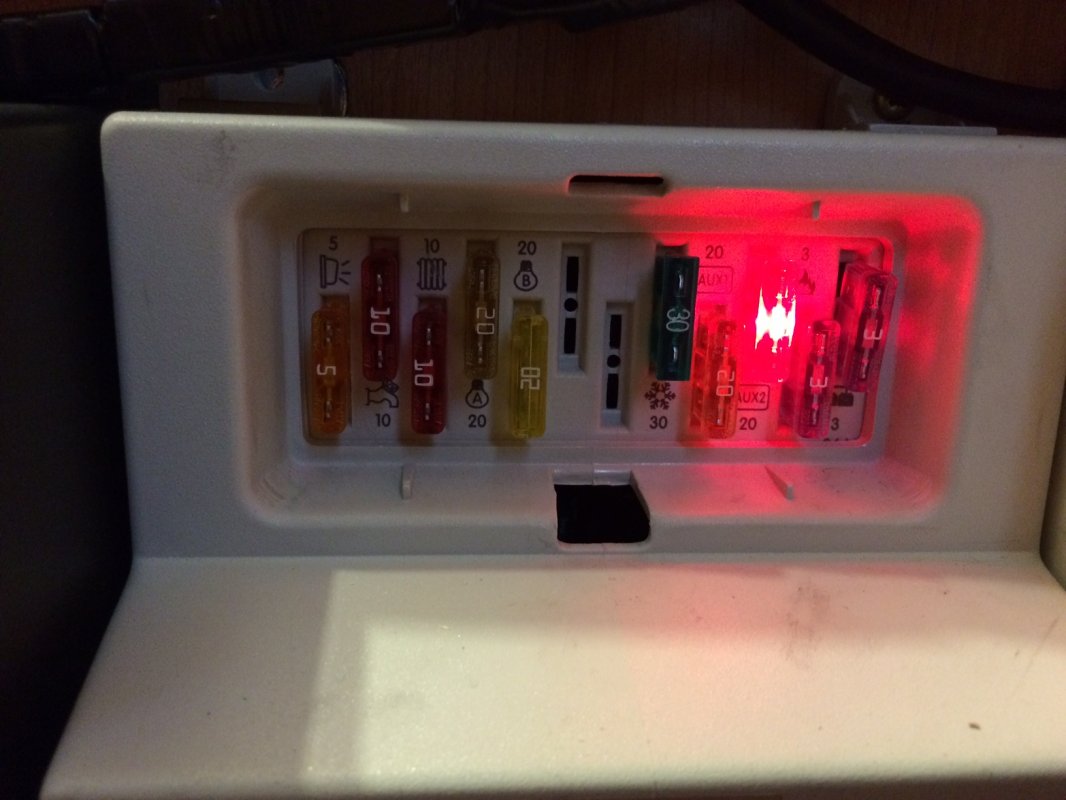

To show you the led fuse working I have blown it and this is what you see:

This can save you a lot of time when looking for the "blown" fuse in a confined area were most fuse boxes are.

What a good and easy idea..
A question.. are they as bright as they seem to be in your picture ?

Does it matter which way around they are? Led's by nature only work when wired the correct way, as in the diode only flows current one way.

Does it matter which way around they are? Led's by nature only work when wired the correct way, as in the diode only flows current one way.

Nop I also thought that so tried them both ways makes no difference.

Subscribers  do not see these advertisements


Hmmmm.. Proly take a pass then ! Mind you, found a load of glow when they blow types on fleabay which seem like a possible option.

Hmmmm.. Proly take a pass then ! Mind you, found a load of glow when they blow types on fleabay which seem like a possible option.

Not looked on fleabay, but I would have thought they were the same sort of thing.

DOH !! In that case.. All good ! LOL !!!
Fleabay ones seem to start at about £2.00 a set inc postage :-)

Nop I also thought that so tried them both ways makes no difference.

That's good to know, I tried google & no luck there, someone had suggested that they had 2 leds wired in parallel, one in each direction which would make sense.

Subscribers  do not see these advertisements


True.. Cannot see them going to the time trouble and expense of fitting them with tiny bridge rectifiers LOL !!

AFAIK John
That CBE distribution board already has LED's built in.If a fuse has gone and the circuit is switched on then the LED behind the blown fuse illuminates red.

Bottom paragraph

Andy, this is a new one for me!!! I never knew this and the reason I ordered the led fuses was because one blew and I could not find which one for ages. Now I will go round to MH later and put a blown fuse in and check this out. Thank you for the information.

Ours already glow red when blown as Andy has said on our motorhome as standard and on Laneside...both are Rapido's...so many may find they may not need them depending on what age the van is.... also Andy's is a Rapido

Subscribers  do not see these advertisements


Last edited:
On the Rapido CBE distribution unit the LED is in the fuse holders not the fuses

Normal ones flash with a light when they go but you must be staring at them when it happens.
I'll pass on this as the car has 47 fuses and the transit has loads all over the place, I haven't found them all yet.
Jaws should put some in the sargant box and watch the disco show for entertainment.

On the Rapido CBE distribution unit the LED is in the fuse holders not the fuses

Andy, good morning just come back from MH and tried everything, even replaced all fuses with blown ones and no "red" light/background....... nothing. So removed cover of fuse box and there are no leds or bulbs behind cover or mounted on panel. It is CBE as photo shows, so must be an old fuse box in a 2011 MH..... I will do some research today on the Benimar MH.

I'll have a look at mine John

Subscribers  do not see these advertisements


I thought members might be interested in the "led" fuses I have fitted in my MH. These are available in any good motorcar accessory store, in my case I got them sent from UK via father in law who went to Halfords.

The picture below is of standard fuse and led fuse.
View attachment 48468 To show you the led fuse working I have blown it and this is what you see:
View attachment 48469
This can save you a lot of time when looking for the "blown" fuse in a confined area were most fuse boxes are.
_______________________________________________________

Their not a new ideal they were fitted in my RAPIDO which I sold a year ago...:)

_______________________________________________________

Their not a new ideal they were fitted in my RAPIDO which I sold a year ago...:)

I did not post as a "new" idea! only posted to share incase MH owners had not seen them before and also very handy if like my fuse box is in a tight space.

On my 09 Rapido fuses were 'lit' from behind, when fuse fuse blew the light went out
Think it was a Scheiber unit

Subscribers  do not see these advertisements


Yup LED's but only on the fuse holders that are actually employed, not the out of use ones.


Andy, heading round to check now as did not try with no fuse in place, but I'm sure it does not do that....

Back soon.

You need the fuse out or a blown one AND the circuit must be on. So if you have switched the lighting on on the overdoor panel you also need to switch a light switch on. removing the lighting fuse should then bring the fuse fail LED on. Same for each circuit.

Andy, just back and nop..... no led's light when fuse blown or removed. At least I have my "modded" fuses in place.
