Is this spring from the seat swivel? (1 Viewer)

Affiliate links here may earn MHF compensation

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
I originally posted this in Technical but have had no response :cry: I have found a spring on the floor in front of the driver's seat. I'm 99.9% certain that it is off the FASP seat swivel, but I have absolutely no idea where it goes, apart from, in some way, being connected to the orange lock. I bought it from Jennings Seating, but there's nobody available until Monday. Lots of you must have Fasp seat swivels in their MH? They're supposed to be the best though I would dispute that! :whistle: Does anyone have a diagram or photo of theirs?


Riverbankannie

LIFE MEMBER
Mar 11, 2016
10,782
62,914
Bristol
Funster No
41,967
MH
IH 630 RL PVC
Exp
12
Hi @WhiteCheyenneMan
I thought someone would have replied to this or your other thread before now.
I’ve just got home from grandparent duties and gone out to my van to take a look. I haven’t got my best torch but I’ve had a good look and the only spring that I can see under the seat, on the passenger side at least, is the long one from front to back, painted black and much larger than that in your photo.
I will have another look to tomorrow in better light.
I have the same FASP swivel.


pappajohn

LIFE MEMBER
Aug 26, 2007
43,502
50,940
Dark side of the moon
Funster No
172
Exp
Since 2005
A compression spring like that would normally fit OVER some kind of link rod to keep it captive.
The lock lever will/should have a spring with a hook at each end.

I'm not 100% certain, but I don't think it's from the seat or swivel.... Maybe not even from the van but brought in accidently.

OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
Hi @WhiteCheyenneMan
I thought someone would have replied to this or your other thread before now.
I’ve just got home from grandparent duties and gone out to my van to take a look. I haven’t got my best torch but I’ve had a good look and the only spring that I can see under the seat, on the passenger side at least, is the long one from front to back, painted black and much larger than that in your photo.
I will have another look to tomorrow in better light.
I have the same FASP swivel.

Thank you Riverbankannie! If you have a FASP swivel, it might be conclusive! There is a simple wire springy clip around the shaft of the orange lever and the hooked end appears to simply hook over the edge of the top plate. I'm not sure where the other end goes?

A compression spring like that would normally fit OVER some kind of link rod to keep it captive.
The lock lever will/should have a spring with a hook at each end.

I'm not 100% certain, but I don't think it's from the seat or swivel.... Maybe not even from the van but brought in accidently.

Yes the lock lever does have a spring with a hook at one end. The other end is straight wire. You may be right that the spring is not from the seat but if it's alien to the van, how did it get there :eek:

Does seat still work OK?

Yes it works in as much as it swivels and locks (with a little force!) but there is no spring action on the lever. That may be the fault of the simple wire spring on the lever itself?

Subscribers  do not see these advertisements



Riverbankannie

LIFE MEMBER
Mar 11, 2016
10,782
62,914
Bristol
Funster No
41,967
MH
IH 630 RL PVC
Exp
12
We’ve both been out to look at the drivers seat this time. Although both seats are the same
There is a small spring for the lever operation but it’s not the one you picture. It’s oainted black and only has 2 coils and is much thicker diameter. I’ve tried to photograph it for you.
Nothing anywhere like the one you picture. Our seat takes a bit of effort to get going in the swivel.
Husbands advice is to put it in safe place for the time you think “ah that’s where that spring goes”

OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
Riverbankannie, thank you both for checking that out and for the clear photos (y)

The first thing that's clear is that yours is a different FASP swivel. My orange lever is on a short plate going straight to a hook end which grasps a bar in order to lock in place. I have a very weedy spring compared to your thick one, but I think that that's the one to tension the lever. I think your husband's recommendation for putting the loose spring in a safe place is good advice, as it looks increasingly likely that it doesn't belong to the seat swivel. It has appeared since we had the mobile technician for the habitation service, but that still doesn't explain where it came from :(

I'm going to have to insert myself between the seats once more and try to find the correct positioning for the weedy spring. I shall put the other spring in my tool bag. Can you make a note of that for me as I'm likely to have forgotten where I put it in six months time :whistle: I may be gone some time!

OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
Okay, the weedy spring is definitely the one which tensions the orange locking lever. But I'm going to have to take the seat out to fix it as I can neither move my arms enough to grasp the spring with fingers or narrow-nosed pliers, nor can I see clearly from 3mm!! Given that, the loose spring does appear to be alien, at least to the seat swivel.

Subscribers  do not see these advertisements


Apr 10, 2010
562
584
Bedfordshire
Funster No
10,998
MH
Carthago
Exp
Since Sept 2003
It has appeared since we had the mobile technician for the habitation service, but that still doesn't explain where it came from :(
Perhaps your technician has been hunting through his toolbox and van, looking for a spring that he knows he had recently! :LOL:

Mar 23, 2012
9,663
32,643
sleights
Funster No
20,245
MH
c class
Exp
1
As a fellow ford based motorhome owner have you replaced your door lock and secured your OBD port our friend recently had theirs nicked!!!!

OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
As a fellow ford based motorhome owner have you replaced your door lock and secured your OBD port our friend recently had theirs nicked!!!!

I have replaced the driver's door lock (no outside lock on the passenger door) with a Garrison lock and I have a Bulldog wheel clamp and a Stoplock Pro for the steering wheel. I am about to get a OBD Port lock and am just awaiting a reply to my query from Garrison Locks :wink:

Mar 23, 2012
9,663
32,643
sleights
Funster No
20,245
MH
c class
Exp
1
I have replaced the driver's door lock (no outside lock on the passenger door) with a Garrison lock and I have a Bulldog wheel clamp and a Stoplock Pro for the steering wheel. I am about to get a OBD Port lock and am just awaiting a reply to my query from Garrison Locks :wink:
We have the obd lock from garisson the instructions are rubbish but easy to see how it goes and a short job. Also have the hykee door lock not so easy to fit instructons rubbish too!!!!. Just looking at clutch claw/wheel lock/post etc as moving house and it will be there not in secure storage. My mate also drilled a hole in the swivelling seat base so he can lock it facing backwards. I think all you need to do is make it easier to pick another one!

Subscribers  do not see these advertisements


OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
We have the obd lock from garisson the instructions are rubbish but easy to see how it goes and a short job. Also have the hykee door lock not so easy to fit instructons rubbish too!!!!. Just looking at clutch claw/wheel lock/post etc as moving house and it will be there not in secure storage. My mate also drilled a hole in the swivelling seat base so he can lock it facing backwards. I think all you need to do is make it easier to pick another one!

Agreed! Er, since you have the Garrison Lock, did it come with all necessary screws/use existing screws? And did you have to drill or cut anything?

I used this Youtube video for the door lock, it's not the best, but quite entertaining when he forgets and drops bits!


TheBig1

LIFE MEMBER
Nov 27, 2011
17,685
43,756
Dorset
Funster No
19,048
MH
A class
Exp
many many years! since I was a kid
We have the obd lock from garisson the instructions are rubbish but easy to see how it goes and a short job. Also have the hykee door lock not so easy to fit instructons rubbish too!!!!. Just looking at clutch claw/wheel lock/post etc as moving house and it will be there not in secure storage. My mate also drilled a hole in the swivelling seat base so he can lock it facing backwards. I think all you need to do is make it easier to pick another one!
these are excellent too
http://www.garrisonlocks.co.uk/peda...MIyvCbwcyi4AIVg4bVCh2aNg3eEAQYBSABEgKLN_D_BwE


TheBig1

LIFE MEMBER
Nov 27, 2011
17,685
43,756
Dorset
Funster No
19,048
MH
A class
Exp
many many years! since I was a kid
the stray spring also looks similar to the one inside the hand brake lever


Riverbankannie

LIFE MEMBER
Mar 11, 2016
10,782
62,914
Bristol
Funster No
41,967
MH
IH 630 RL PVC
Exp
12
the stray spring also looks similar to the one inside the hand brake lever
Interesting, whilst looking under the driver’s seat, I had a thought about it belonging to the handbrake but I’ve got a Ducato so would be different anyway.

Jan 2, 2015
2,493
8,723
Cumbria
Funster No
34,615
MH
Burstner Solano t725
Exp
since 2014
Just a thought....

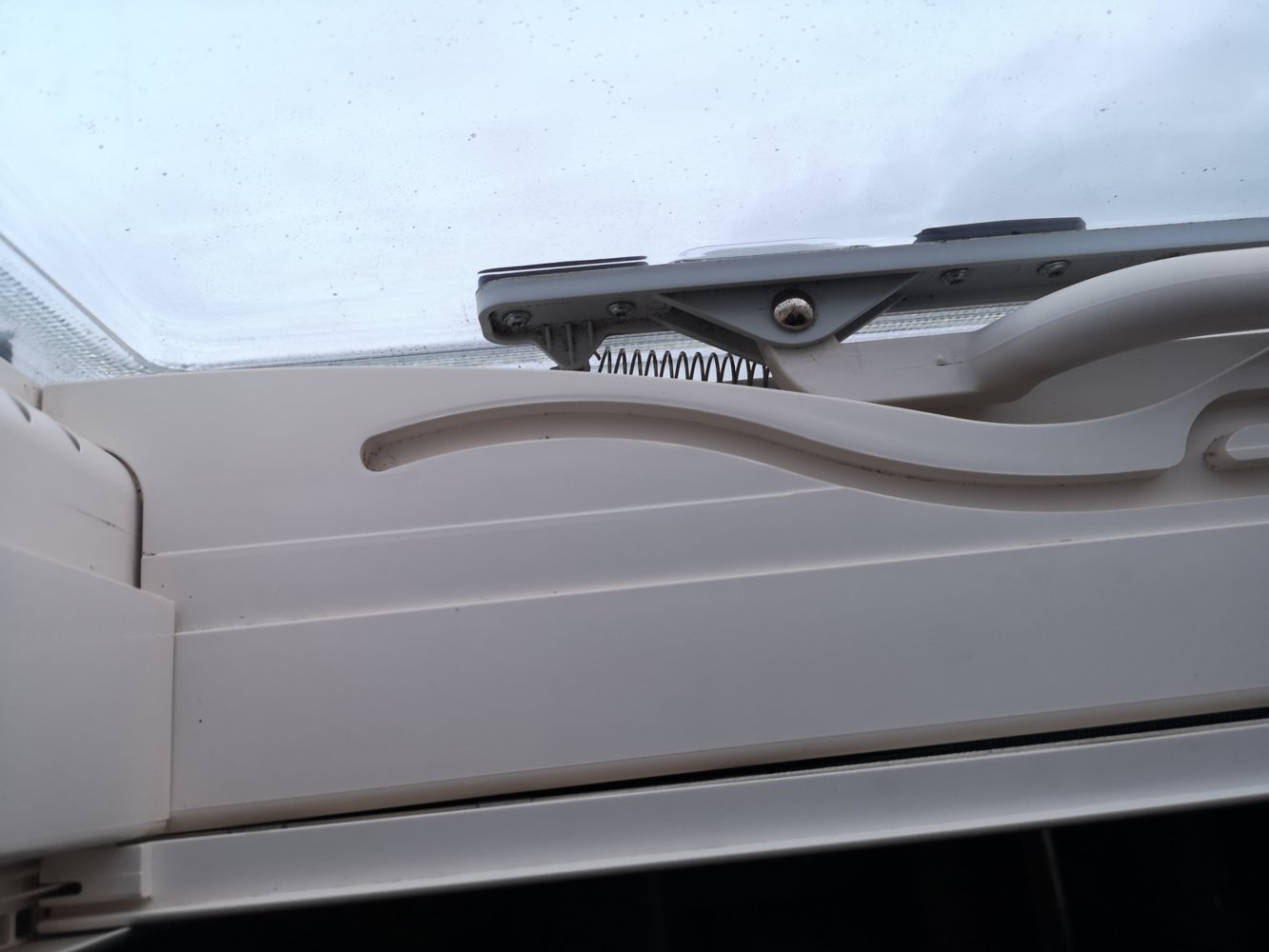

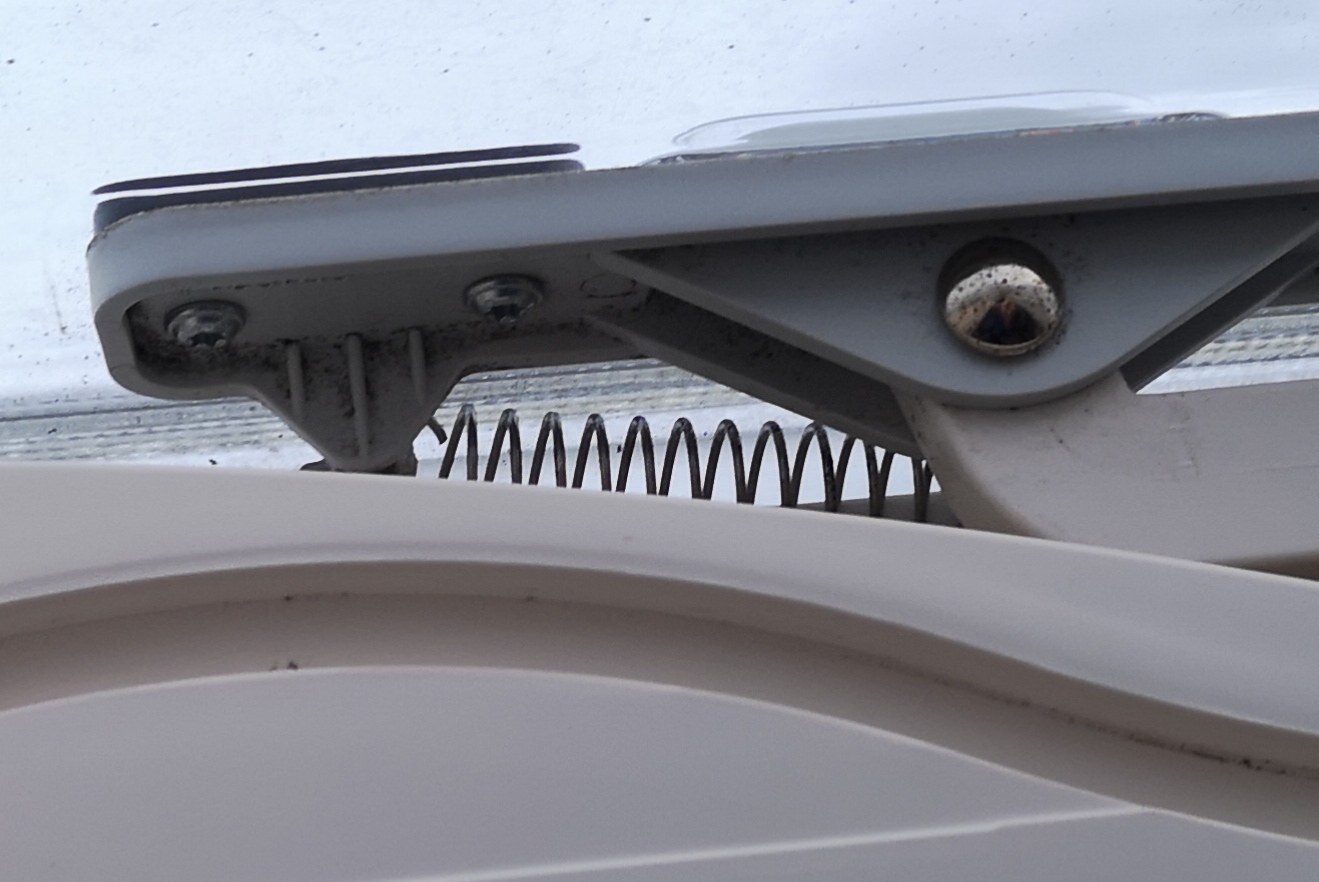

Couldn't be the spring from the skylight opening mechanism could it. Mine are tension rather than compression but same sort of size & guage as your image
Tried to upload an image of ours but no signal.
Barry


GWAYGWAY

Free Member
Sep 6, 2014
4,213
3,306
Dover
Funster No
33,216
MH
Hymer ML I 580
Exp
4 years
the stray spring also looks similar to the one inside the hand brake lever
Agreed, have you still got the button on the push end of the handbrake lever, they are only plastic and not the strongest of thread material, it would also explain why it was found where you found it.

Subscribers  do not see these advertisements


OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
Just a thought....

Couldn't be the spring from the skylight opening mechanism could it. Mine are tension rather than compression but same sort of size & guage as your image
Tried to upload an image of ours but no signal.
Barry

Thanks Barry but no, I don't have any skylights of that type.

OP
OP
WhiteCheyenneMan

WhiteCheyenneMan

Free Member
Sep 29, 2011
461
267
TN30, Nr Tenterden
Funster No
18,328
MH
C Class
Exp
Since 2011
the stray spring also looks similar to the one inside the hand brake lever

Doubtful you'll find a compression spring that long that isn't held captive by either being in a sleeve/tube or has rod through it.
Either way, it ain't just going to fall out.

Agreed, have you still got the button on the push end of the handbrake lever, they are only plastic and not the strongest of thread material, it would also explain why it was found where you found it.

Nope, handbrake is intact and working normally........... but thanks!
