Hi all.

Well, finally swallowed my pride and bought a 240v TV. I know I'll need and inverter, but whilst on hookup it should be okay...BUT!

I'm lost amongst the spaghetti of connections and possibilities - can anyone help please?

I have a CAMOS dome satellite, a wind-up aerial, a CAMOS control box, a "selector" box, a SKY digibox, a digital HD /DVD Recorder and 1 TV (but will have another shortly).

Some of the wiring (the CAMOS box, and cables into the selector box) has already been done by someone who looks like they know what they are doing, so I haven't touched them. Since they did it, I have acquired the SKY box, the VCR and a TV, and so I need to incorporate them into the system, but I don't know how - gone are the days of a single aerial socket in, and another out.

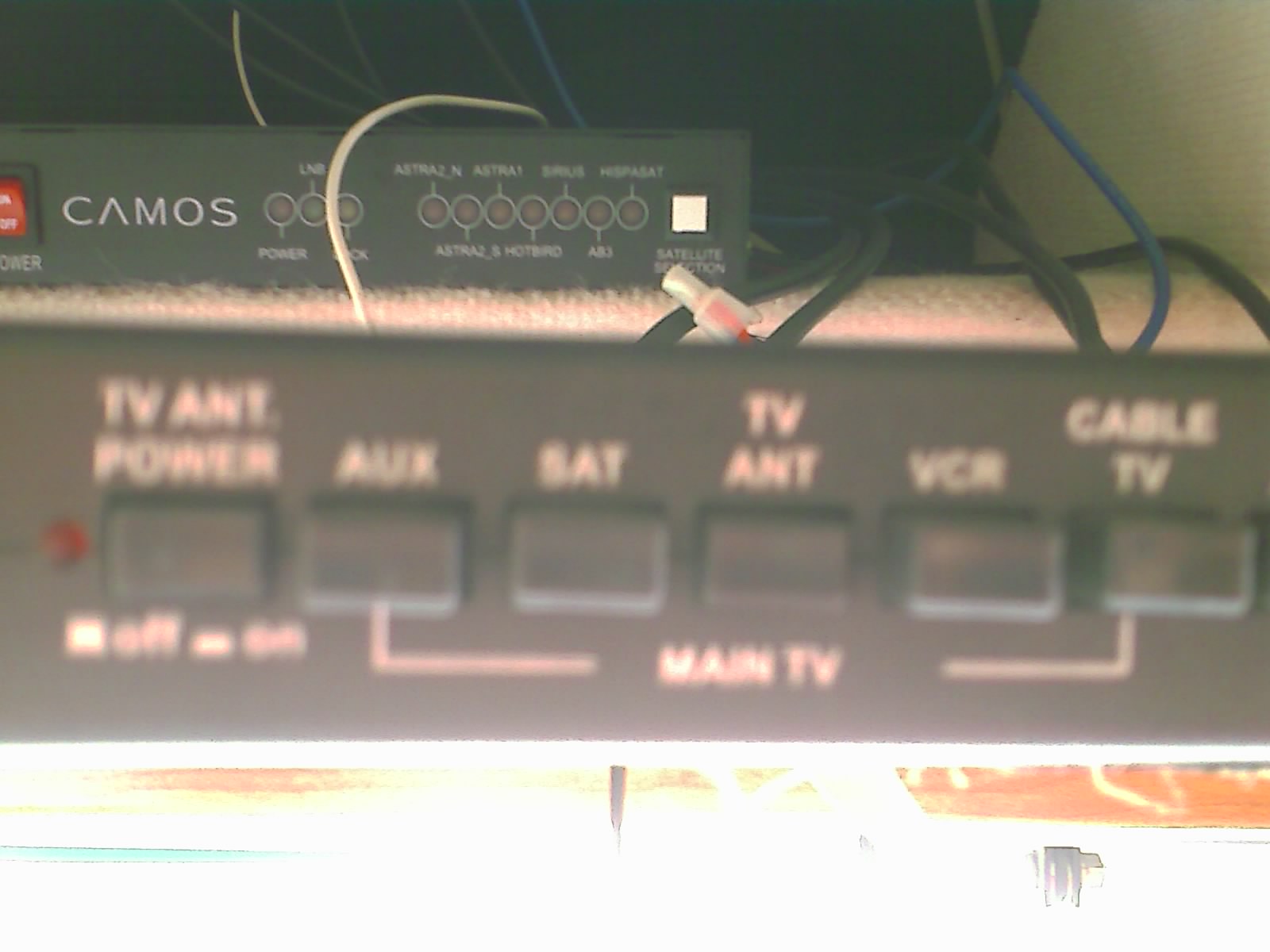

So, can anyone help please? I've tried to take piccies of the boxes and the connections on the back, but some of them are a bit blurred. I've attached them so hopefully you'll be able to point me in exactly the right direction. Needless to say, there will be a drink or two in it as a "thank you".

So to recap -

1) Dumb user with 2 aerial inputs - 1 analogue, 1 satellite
2) CAMOS Satellite selector box
3) "Source Selector box"
4) SKY Digibox (pace 430N)
5) Sony HD/DVD Recorder
6) TV (1 at moment, but will be a second one soon)

Papa "hopeful as hell" Smurf

p.s. The filenames of the images explain what each is (I hope) files spilt over 2 posts due to 5 file max :Sad:


Attachments

GJH

LIFE MEMBER
Aug 20, 2007
28,456
36,137
Acklam, Teesside, originally Glossop
Funster No
127
MH
Burstner t625 Harmony
Exp
Since 2006
Some time ago I needed to work out how to plug together several recorders, digital boxes and the TV at home.

I found it useful to draw a rough schematic of how I wanted it and then match the sockets on the various devices to the diagram.

Graham

OP
Papa Smurf

Papa Smurf

Member
Sep 25, 2007
556
2
Funster No
402
Graham, I tried that, but there are too many possible inputs and outputs for a Smurf with very little brain to be able to understand:Sad:


Bryan

Free Member
Jul 19, 2007
2,085
342
Funster No
6
Does the sony hdd recorder.dvd recorder havs a tuner? Freeview or analogue or both?


What do you want to achieve? What do you want to record onto the hdd recorder? Freeview? Analogue? Sky?

Let me know asap as I'm working on it...:Smile:

OP
Papa Smurf

Papa Smurf

Member
Sep 25, 2007
556
2
Funster No
402
Bryan - Ideally, Recorder to record off SKY or Digital Should be possible as "source selector switch" seems to have enough capability to handle it (I COULD BE WRONG!) .

TV & Recorder have HDMI sockets BUT HDMI lead is 1.5 metres long & if Recorder sits in Front of Bus & TV is in rear, they're about 9 metres apart:cry:

Sony Recorder has digital & Analogue tuner.

Papa

Last edited:

Bryan

Free Member
Jul 19, 2007
2,085
342
Funster No
6
Sorry, I assumed (ass-u-me :RollEyes:) that this tv was for front above windscreen.

This TV for bedroom?
Is there tv at front already or is theat tv referred to as tv2?

I assume :)Eek!:) that the bedroom has the standard aerial socket in RV's (like the satelite ones we use)?

OP
Papa Smurf

Papa Smurf

Member
Sep 25, 2007
556
2
Funster No
402
Currently NO TV's in van

Bedroom Connection is co-ax (as per usual)

Bedroom or Front TV can be TV1 or TV2 (Convention says TV2 is bedroom)

This TV intended for Bedroom

Papa


kands

Read Only Funster
Jul 20, 2007
1,285
14
Funster No
3
Hi Papa
Sorry to ask a silly question, but I are an engineer :roflmto:
Why do you want all the recording gear back aft, when all the cabling is forward? Can you not simply place the recording gear in the forward overcab lockers and then use the front to rear cable to view the recording in the bedroom?
Or am I missing something? :ROFLMAO::ROFLMAO:

Keith

OP
Papa Smurf

Papa Smurf

Member
Sep 25, 2007
556
2
Funster No
402
Keith,

That's what I intend - it's just that I bought the recorder to be able to play to either TV, but only bought the rear TV....


kands

Read Only Funster
Jul 20, 2007
1,285
14
Funster No
3
Keith,

That's what I intend - it's just that I bought the recorder to be able to play to either TV, but only bought the rear TV....
Right, OK then....... Got it :ROFLMAO::ROFLMAO:
Have you tried putting the output from the recorder into the "AUX" socket on the TV selector switch? You should be able to then recieve your signals to the recorder and divert the signal to the rear TV via the selector switch?
Maybe you just need to come up here and we can get it sorted :roflmto: I sure as hell ain't doing anything else mate :cry::cry:

Keith


Bryan

Free Member
Jul 19, 2007
2,085
342
Funster No
6
Papa,

Having just come of the phone to you I see that Keith has very kindly offered to sort it out for you if you pop up.

If my suggestions don't work or you just fancy a run up to Keiths, just make sure that he does actually help out and isn't just pining for the opportunity to spend the weekend in an RV :ROFLMAO:


kands

Read Only Funster
Jul 20, 2007
1,285
14
Funster No
3
Papa,

Having just come of the phone to you I see that Keith has very kindly offered to sort it out for you if you pop up.

If my suggestions don't work or you just fancy a run up to Keiths, just make sure that he does actually help out and isn't just pining for the opportunity to spend the weekend in an RV :ROFLMAO:
OUCH Looks like I've been sussed out :ROFLMAO::ROFLMAO:

Keith


Thepips

Trade Member
Sep 26, 2007
493
1
Basingstoke
Funster No
441
MH
RV
Exp
6
Hi Pappa,
The distribution box is simplicity itself. All it does is direct RF signals along standard coax. The only difference is the coax will be fitted with BNC connectors and not the push on connectors we're used to. It's so much easier to use coax rather than trying to get everything connected with scarts or HDMI provided everything has a coax input or output as appropriate. Quite honestly I can't any difference in picture quality. Perhaps I should have gone to Specsavers:ROFLMAO:
On the back of it you'll see inputs for antenna, cable, satellite, VCR and aux and outputs for TV1 (Front), TV2 (Rear) and VCR (errr...VCR).
Connect the RF In on the VCR to the output and the RF out on the VCR to the input on the distribution box.
The last step, and often the most complex is tuning everything in. Take it slowly and it'll all make sense. When we got our RV the previous (American) owner had stripped everything out so we had to start from scratch and even identify which cable went where! Using the distribution box we've got Antenna, VCR/DVD and satellite connected to 2 TVs and VCR. Took about 3 hours to do the lot.
Best of luck
Doug

OP
Papa Smurf

Papa Smurf

Member
Sep 25, 2007
556
2
Funster No
402
Thanks all - especially Bryan. Unfortunately, I've been foiled by the "missing a Coax sex changer" on a Bank Holiday syndrome. Whilst a trip to town would be possible, taxi's are double time on a Bank Holiday, and so at over £15.00 each way, I'll have to wait until Tuesday (hopefully Stelios at VanBitz will have sex changers).
