There doesnt seem to be any info to a simple solution to connect into the fuel gauge in the top of the tank (Like the sprinter and VW.
I have seen on U tube some connect to the diesel fuel return before it goes back into the tank. I dont want the tank they supply inside the van and dont want to drill the tank.
Anyone know if fitting to the fuel return will effect anything else with the running of the van or any sensors connected to ECU

Thanks in advance

Jan 17, 2014
1,292
2,441
Wellington, Telford, Shropshire
Funster No
29,731
MH
Van Conversion
Exp
Since 1977
My initial thoughts would be to question if the return goes almost to the bottom of the tank. If it only goes to the top then your heater won't be able to suck up fuel.

I'm a VW man and understand your query, having looked at pictures of the sender unit of a typical Renault unit it looks very similar to the VW/MAN version but I've no idea if there is a fitment on it ready to connect the heater feed pipe.

I have fitted a standpipe drilled and inserted into a tank with no problems but a direct fitment in the top of the sender unit is much simpler.

Jul 4, 2018
1,281
1,663
Bristol
Funster No
54,738
MH
Weinsberg
Exp
A few years.
Most return or leak off pipes will have no effect on ECU etc.
As stated the pipe will not reach the bottom of the tank, how far I don't know have a search for the sender unit and see what it is like. Of course if it does not go to the bottom the heater will stop long before your tank is empty.

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
My initial thoughts would be to question if the return goes almost to the bottom of the tank. If it only goes to the top then your heater won't be able to suck up fuel.

I'm a VW man and understand your query, having looked at pictures of the sender unit of a typical Renault unit it looks very similar to the VW/MAN version but I've no idea if there is a fitment on it ready to connect the heater feed pipe.

I have fitted a standpipe drilled and inserted into a tank with no problems but a direct fitment in the top of the sender unit is much simpler.
yes the considerstion would be if at the bottom you risk draining the tank . If just at the top and nothing to suck i imagine it would make the fuel coming out continuously frothy so suspect it drops down as that would make more sense but i guess things are not always designed with common sense

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
Most return or leak off pipes will have no effect on ECU etc.
As stated the pipe will not reach the bottom of the tank, how far I don't know have a search for the sender unit and see what it is like. Of course if it does not go to the bottom the heater will stop long before your tank is empty.
I have just been looking at pictures and it looks like the return feed finnishes higher than the bottom of the pump intake.
So is worth at least getting the connector to replace an existing joint without cutting anything

Subscribers  do not see these advertisements


Jan 17, 2014
1,292
2,441
Wellington, Telford, Shropshire
Funster No
29,731
MH
Van Conversion
Exp
Since 1977
I have just been looking at pictures and it looks like the return feed finnishes higher than the bottom of the pump intake.
So is worth at least getting the connector to replace an existing joint without cutting anything
Be sure that in normal operation you cannot suck air into the feed for the heater or you will have continual problems with the heater. Height from the bottom of the tank is usually regarded as to leave sufficient fuel in the tank to drive a reasonable distance to re-fill even if the heater runs until it cannot get any more fuel.

Sep 3, 2012
7,686
26,420
Cheshire
Funster No
22,759
MH
C Class Elddis 175
Exp
8+ years
There is one yutube vid showing a connection through the elbow on the vent tube. Saves drilling into the tank as the elbow can be removed and fuel line fitted to the elbow sealed and refitted. And I assume that the elbow is readily available should you wish to remove the fuel line at a later date. (y)

Last edited:
OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
Be sure that in normal operation you cannot suck air into the feed for the heater or you will have continual problems with the heater. Height from the bottom of the tank is usually regarded as to leave sufficient fuel in the tank to drive a reasonable distance to re-fill even if the heater runs until it cannot get any more fuel.
Definately deserves more investigation

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
There is one yutube vid showing a connection through the elbow on the vent tube. Saves drilling into the tank as the elbow can be removed and fuel line fitted to the elbow sealed and refitted. And I assume that the elbow is readily available should you wish to remove the fuel line at a later date. (y)
I shall have a look thanks. Its just a matter of getting it right first time

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
I called into a diesel specialist and spoke to them about using the t piece to take a feed from the diesel return pipe
And they said for my van it will not cause any problem to the van.
Having looked at the pictures of the sender units it looks like the return pipe does finish higher than the intake.
So i will try it if i have problems i shall post.


AdrianJW

Free Member
Oct 7, 2023
4
7
St Albans, UK
Funster No
99,245
MH
Nissan NV400
Exp
Newbie! March 2023
I called into a diesel specialist and spoke to them about using the t piece to take a feed from the diesel return pipe
And they said for my van it will not cause any problem to the van.
Having looked at the pictures of the sender units it looks like the return pipe does finish higher than the intake.
So i will try it if i have problems i shall post.
Hope you don’t mind me asking - This is exactly the approach I was hoping to take with my NV400 - I don’t really want to drop and drill the tank and I don’t want to risk fuel spills inside the van. Lots of connectors on eBay. Curious how this worked out for you?

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
I was sceptical but it works the only thing not quite happy with is the stop valve that I fitted directly after the T piece that I had to jubilee clip in place We are using the heater now actually in France as the mornings have a chill to them
The heater has never failed to start so a success
I have one ready to fit to our next van

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
On eBay they state for the Renault traffic but they do fit the master and NV400


AdrianJW

Free Member
Oct 7, 2023
4
7
St Albans, UK
Funster No
99,245
MH
Nissan NV400
Exp
Newbie! March 2023
Fab - That’s just what I needed to hear. Enjoy France!

Subscribers  do not see these advertisements


Jan 22, 2013
1,287
64,101
London SE
Funster No
24,385
MH
A class Adria vision I707
Exp
since 1971
A bit late I know but on my early Master 2008 I just T off the fuel filter between the filter and squeeze ball, it’s not pressurised and has worked for the last ten years with no problem,


AdrianJW

Free Member
Oct 7, 2023
4
7
St Albans, UK
Funster No
99,245
MH
Nissan NV400
Exp
Newbie! March 2023

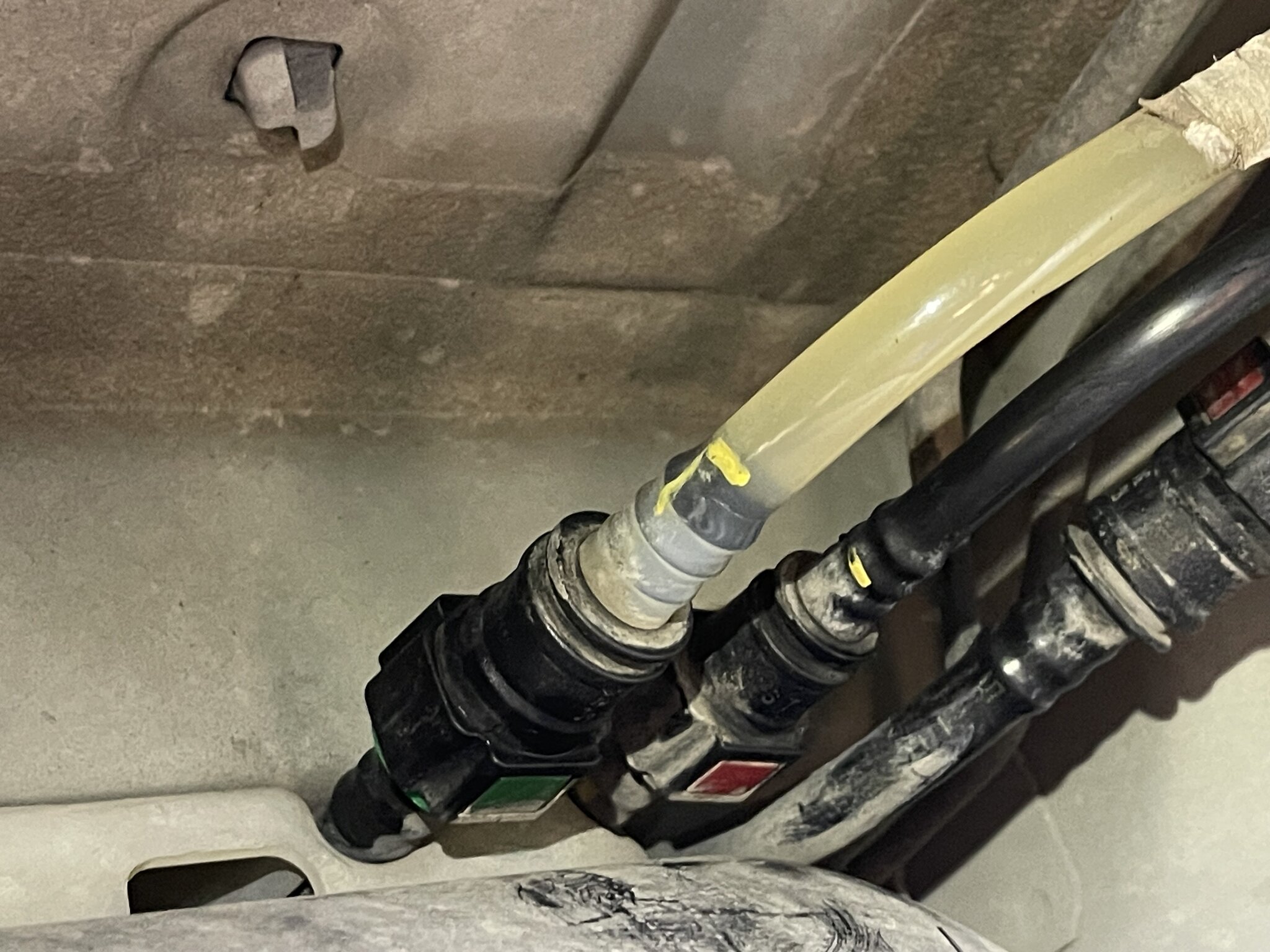

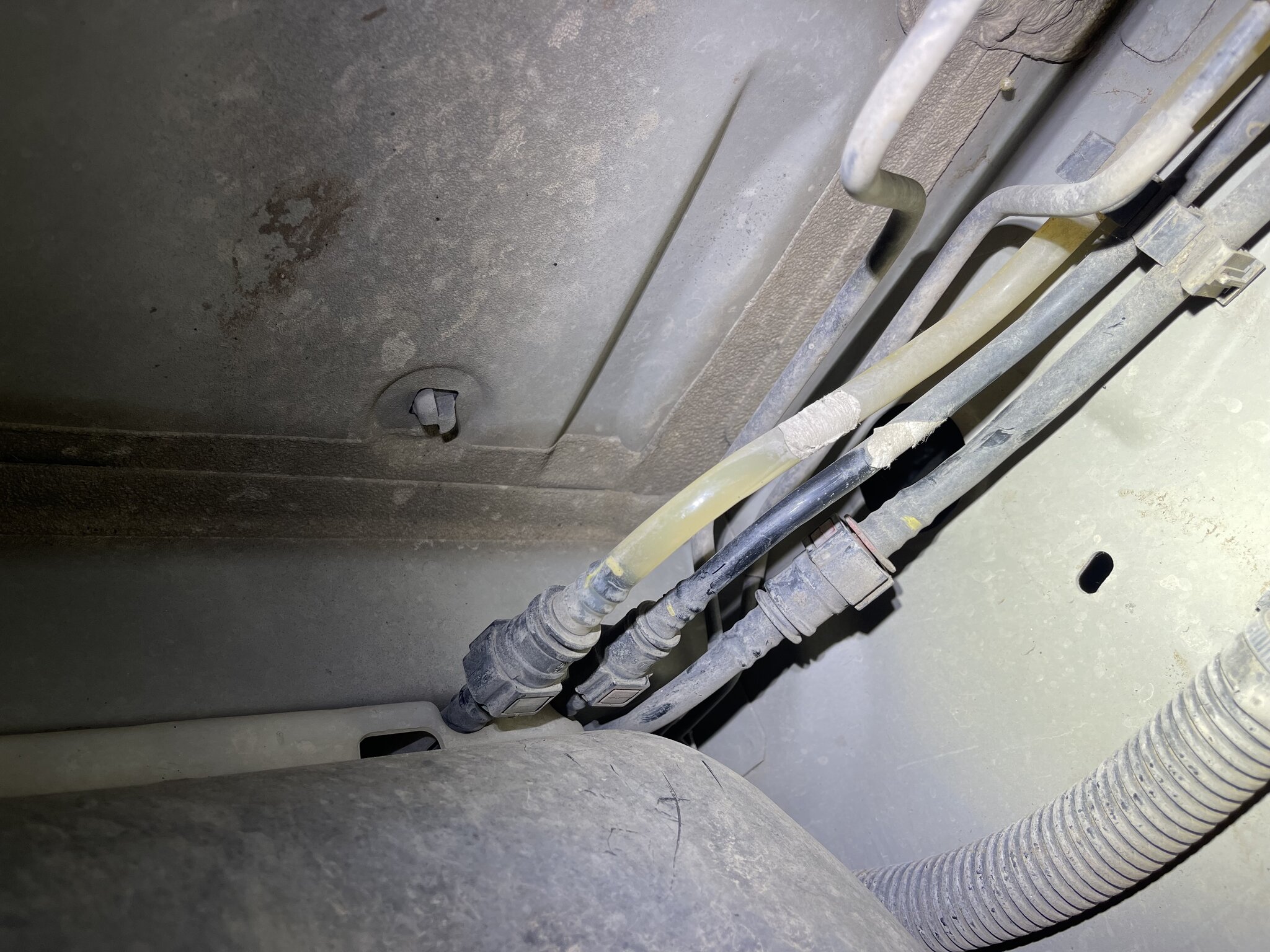

just got to the part where I’m ready to fit the t-piece and realise there are what look like two return feeds. One the same bore as the main fuel line and one narrower. Now wondering which one to connect to!

It’s a 2016 NV400 (same as Mk3 Master)

Posting on the off chance anyone knows

IMG_9730.jpeg IMG_9727.jpeg IMG_9732.jpeg


SteelFalcon

Free Member
Nov 5, 2023
1
0
Funster No
99,699
MH
2016 Renault Master
just got to the part where I’m ready to fit the t-piece and realise there are what look like two return feeds. One the same bore as the main fuel line and one narrower. Now wondering which one to connect to!

It’s a 2016 NV400 (same as Mk3 Master)

Posting on the off chance anyone knows

View attachment 822767 View attachment 822768 View attachment 822769
Have you had any success with this? I am having the same problem with my 2016 Renault Master 3. The thinner return is from the common rail and the thicker return is form the diesel pump. I am struggling to see which one goes deeper into the tank from pictures online.

Jun 2, 2024
1
0
Funster No
103,544
MH
Renault master
On eBay they state for the Renault traffic but they do fit the master and NV400
Hi Peter. How did you go getting a fuel takeoff on your master for the diesel heater. I’m trying to get this sorted on mine Thanks Rick

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
Hi I bought from eBay a t piece and connected under the van
I followed the return pipe to the tank there are three pipes
I can put more detail up in a few minites

Subscribers  do not see these advertisements


OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
I can’t remember exactly which pipe it was I think the middle and from memory the return from the injection rail
I have done 2 vans like this not had a running problem with the heater
Make sure you have a good size live and neutral feed to the heater as if it comes from any distance the original on is not sufficient
I also made up a shut off valve straight after the t piece to the new heater

OP
OP
PeterCarole29

PeterCarole29

LIFE MEMBER
Jul 23, 2013
1,273
1,372
Colchester
Funster No
27,084
MH
Renault Master Fleetwood
Exp
20 years
I used eBay number 176259532116 it’s advertised for a Renault traffic but it does fit
The t pice you can push a hose over and fit a stop valve I got from a hose specialist
If you don’t want to do that I have seen eBay item 176309751349
It’s advisable to sleeve any fuel pipe and cable tie it up as much as posible
