If it doesn't work it will be because the seller still got the full amount with that discount with eBay making up the difference - strange but that's what happened for this one https://www.motorhomefun.co.uk/forum/threads/safefill-20-off.230668/ according to the Safefill bottle seller.
As this looks like a good security product we had already emailed the manufacturer to see if they can offer an ongoing Fun discount code for their website - will update here once we hear back.
I did work on them for a discount code, but they are on a fairly small profit margin with these

Subscribers  do not see these advertisements


Aug 11, 2020
3
4
Funster No
74,307
MH
Low profile
Exp
Since 2018
Thanks for the recommendation.
Looks to be a good bit of additional security at a reasonable price.
I am a new member and have just ordered one direct from ATE I did let them know that my order was through MH Fun forum. Hopefully they may send discount code for other members!!

Subscribers  do not see these advertisements


Oct 8, 2014
596
955
Wiltshire
Funster No
33,737
MH
Autotrail Excel 600B
Exp
Previous VW Camper + Caravan
Thanks to all who posted info on RTE pedal lock I am interested in a purchase but noticed web site (ebay) pedal lock for automatic was for 2006-2014 my van will be a Fiat automatic will this 2006-2014 fit
Try phoning them. I did to ask if they had one for my Daughter's Bongo - they didn't. :(


Wombles

LIFE MEMBER
Oct 28, 2013
8,589
6,877
SW England
Funster No
28,783
MH
Van Conversion
Exp
A few years now
If it doesn't work it will be because the seller still got the full amount with that discount with eBay making up the difference - strange but that's what happened for this one https://www.motorhomefun.co.uk/forum/threads/safefill-20-off.230668/ according to the Safefill bottle seller.
As this looks like a good security product we had already emailed the manufacturer to see if they can offer an ongoing Fun discount code for their website - will update here once we hear back.
A prompt friendly reply but no Fun discount code - as TheBig1 posted their margins are too narrow - it was worth a try!
Have to agree that £60 delivered is a very fair price & those that bought these at £48 with eBay discount got a bargain (y)

Mar 26, 2009
7,517
8,596
Yr Wyddgrug
Funster No
6,057
MH
Hymer B678DL
Exp
Since 2009
A prompt friendly reply but no Fun discount code - as TheBig1 posted their margins are too narrow - it was worth a try!
Have to agree that £60 delivered is a very fair price & those that bought these at £48 with eBay discount got a bargain (y)

That would be me then .... now where's that gloating emoji when I need one. :giggle: :giggle: ;)

Subscribers  do not see these advertisements


Sep 8, 2020
24
9
Funster No
75,618
MH
120
Exp
2018
I was searching for another security measure to protect our motorhome from theft, and thought of the excellent clutch claw, as was marketed to motorhomers at shows a few years ago. Not a bad price at £119, but the ability to fit an automatic van was a bit vague and non comital from the company. So the search went on, and on eBay I found several similar devices at all sorts of pricing

The one that caught my eye was a product made by a small engineering firm who do welding on site and in their workshop. I was a little concerned as it was so cheap, £60 including delivery and a decent lock. The lock is at least half that value, as it is pretty substantial. The rest is 2 pieces of 8mm steel plate, lazer cut, welded and painted a nice blue colour.

Upon delivery I unpacked the pedal lock and was immediately impressed with the obvious quality of the finish and how it fits together. The lower part goes beneath the pedals, with a plate that fits on top. All secured with a substantial lock on the top, which would take a lot of work to cut off and is impossible to attack with bolt croppers like a normal padlock

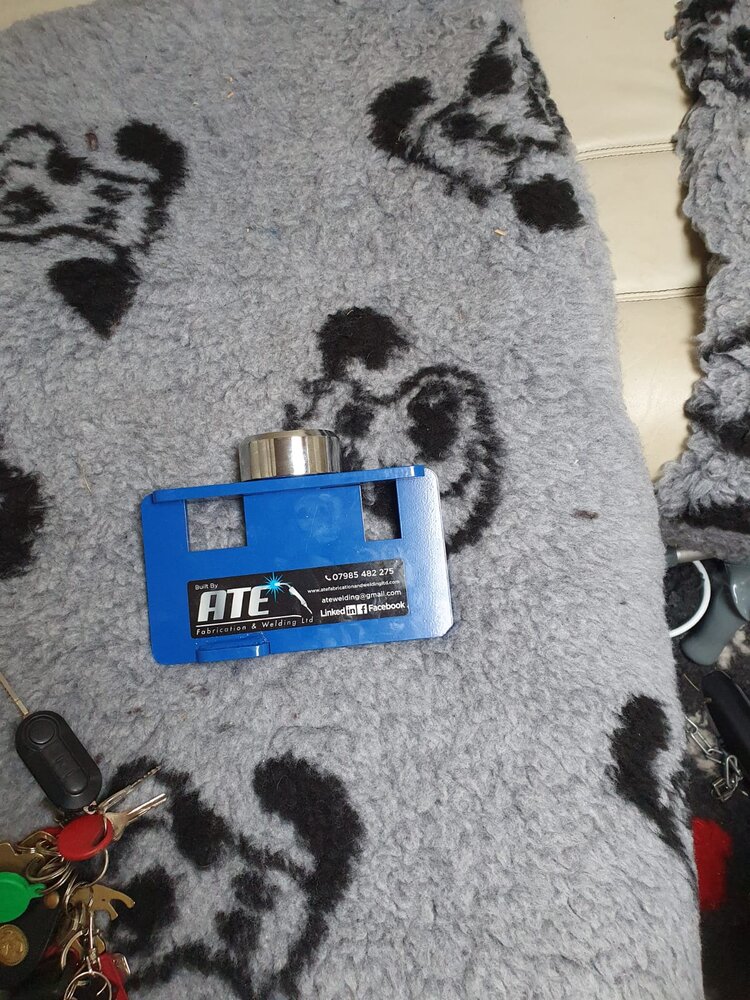

Out of the packaging
View attachment 447728

Taken apart to fit, just 3 parts
View attachment 447727

First slide the bottom slotted plate under the pedals, with the pedal arms in the slots and move it to an upright position View attachment 447729

Drop the other steel plate on the top, covering the lower plate and leaving the hole for the key
View attachment 447730

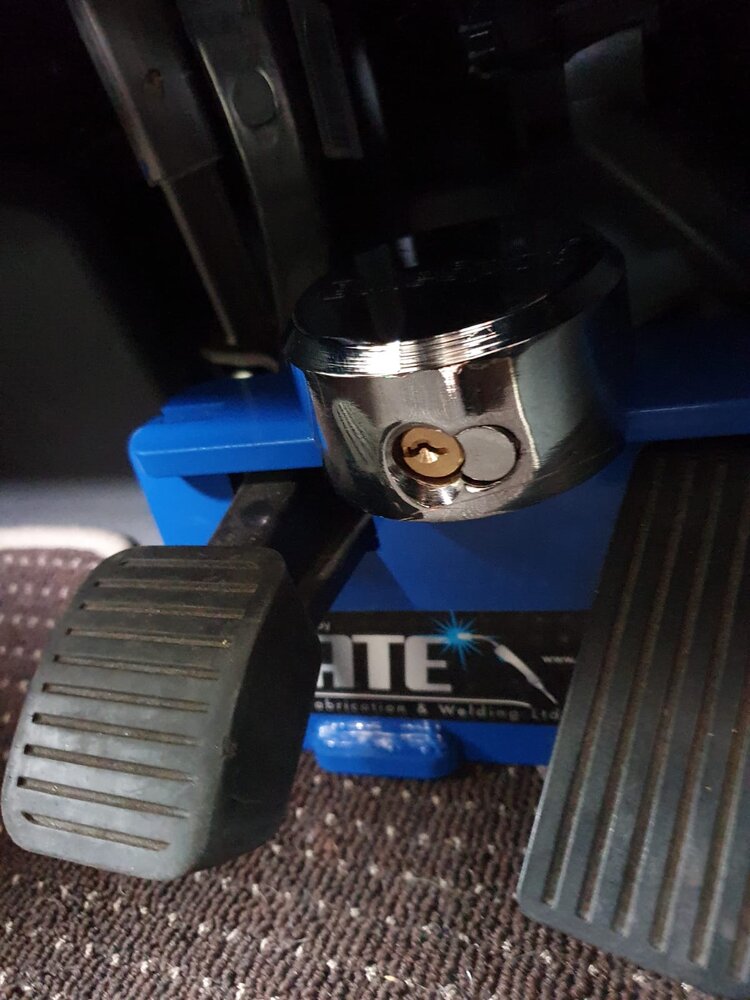

Then open the lock and slot over the hole in the plate. I found that the key needs turning a full 90 degrees so the key faces up and down. Then press the lock barrel in and turn the key. As simple as that
View attachment 447731


This lock is very substantial and secure. I can highly recommend this to any motorhomer or even a van owner as a very good investment for the security of your vehicle.

I purchased direct from their website and got 2 free window stickers in addition. All in a bargain at £60 and models available for most popular vans, whether automatic or manual. I have absolutely no connection to this supplier and this review is intended to be helpful to other members. I did ask about a discount for other members, but at this price the margins are very tight. Also happy to help a small business in these troubled times

Subscribers  do not see these advertisements



Wombles

LIFE MEMBER
Oct 28, 2013
8,589
6,877
SW England
Funster No
28,783
MH
Van Conversion
Exp
A few years now
Do like the smart blue paintwork but for anyone that would prefer this to be more visible as a deterrent - know some mentioned respraying the lock to a brighter colour but perhaps reflective coloured tape/stickers would be an easier option?

Dec 31, 2010
712
1,225
Sunny South Shields
Funster No
14,797
MH
Malibu I500 A Class
Exp
Since 2010
*Update* they are sending me another unit they have been very helpful only problem is they are using hermes again 🤞😂

Subscribers  do not see these advertisements



Minxy Girl

LIFE MEMBER
Aug 22, 2007
24,172
35,856
E Yorks
Funster No
149
MH
Carthago Cmpct i-138
Exp
Since 1996 we've had Elddis, Swift, Rapido, Rimor, Chausson MHs and Autocruise & Globecar PVCs
I read the title of this thread and looked at the avatar and thought one of his dogs had eaten his security equipment! :giggle:

Jun 8, 2019
3,274
12,140
Bexley West Kent
Funster No
61,505
MH
Autocruise starlet 2
Exp
May 2019
I have seen posts on here about making a quick getaway. How would you do that with one of these fitted?

Subscribers  do not see these advertisements


OP
TheBig1

TheBig1

LIFE MEMBER
Nov 27, 2011
14,520
27,718
Dorset
Funster No
19,048
MH
A class
Exp
many many years! since I was a kid
I have seen posts on here about making a quick getaway. How would you do that with one of these fitted?
it might take 20 seconds to unlock but would make a useful weapon


Langtoftlad

LIFE MEMBER
Apr 12, 2011
5,835
65,343
Langtoft, South Lincs
Funster No
16,024
MH
WildAx Aurora FB [PVC]
Exp
Since 2015
I have seen posts on here about making a quick getaway. How would you do that with one of these fitted?
I'm not sure I'd have it fitted, if I was actually in the van, for the night.
Be some burglar who'd have the balls to drive off with the occupants inside :oops:

Aug 18, 2011
9,335
11,799
derbys
Funster No
17,808
MH
AUTOSLEEPER SYMBOL
Exp
since 2007.Tugger before since 1970
I have seen posts on here about making a quick getaway. How would you do that with one of these fitted?
Don't think there would be a need to fit one if you were sleeping in the van,,BUSBY.

Jun 8, 2019
3,274
12,140
Bexley West Kent
Funster No
61,505
MH
Autocruise starlet 2
Exp
May 2019
They might threaten you, and make you get out of the van then drive off with the van. Leaving you standing there in your PJ’s and night cap😂😂

Oct 7, 2015
1,369
2,999
Cirencester
Funster No
39,288
MH
Elddis Majestic 155
Exp
Motorhoming since 2015......
‘PJs’.......I don’t think so! ;)

Subscribers  do not see these advertisements



Aerialmark

LIFE MEMBER
Oct 13, 2018
238
1,530
Burnley
Funster No
56,708
MH
Knaus/Weinsburgh
Exp
I'm new to it
Errr found the stickers on the lock itself as i fitted it yesterday :giggle:

Oct 8, 2014
596
955
Wiltshire
Funster No
33,737
MH
Autotrail Excel 600B
Exp
Previous VW Camper + Caravan
These are extremely good value for money. I have a "clutch claw" on my MH, but considered getting an ATE lock for my daughter's Bongo. I contacted ATE, but unfortunately they do make a suitable version, so I decided to make my own.

After measuring up, I modelled the assembly in Fusion 360, and then made a MDF prototype which seems to work well. I've sourced the padlock that they use (£30) and 8mm plate for the body, and 10mm plate for the removable top portion. (£15)

So far, with what I've spent on materials, + the cost of some new cutting disks and paint once it's finished, the £48 that some people paid is very good!

Feb 17, 2012
479
6,277
merseyside
Funster No
19,858
MH
PVC
Exp
Since 2015
I got mine for a 2018 Ford. My brother in law had to cut the slots more for me as I have a carpet in my footwell and the lock wouldn’t fit.
