Hi

We have a Hymer Free 600 2020 on a Fiat Ducato 140 PS chassis.

We purchased a second battery "Varta LA95 Professional Dual Purpose 840 095 085 AGM Battery 95Ah" matches the other - The battery will be here on Friday but this coming Saturday I would like to fit it!

Could someone point me in the right direction of what additional cables, connectors I need so I can put in an order ready for this coming weekend!

Information I'm looking for:

Copper Cable diameter? 16mm?
Length?
Connectors?
Caps / Covers etc

Pictures or Link's would be fantastic!!

Thank you in advance for any information!

/Martin

P.S If anyone has done this to there own Vehicle please feel free to post comments on what I should look out for!

There is a table somewhere that tells of length to thickness needed.

Auto & Marine Electrical Components & Accessories | 12 Volt Planet

Huge range of 12v & 24V wiring products, components and accessories for vehicle electrics, marine & leisure electrical projects. FREE delivery on orders over £100
www.12voltplanet.co.uk
These sell cables and crimping etc

If price is no object have a look at your local Halfords. Don't forget to fasten the battery down and fit a breather.

Ginger.Tog said:
Pictures or Link's would be fantastic!!
Click to expand...



Thank you all for the information provided so far!

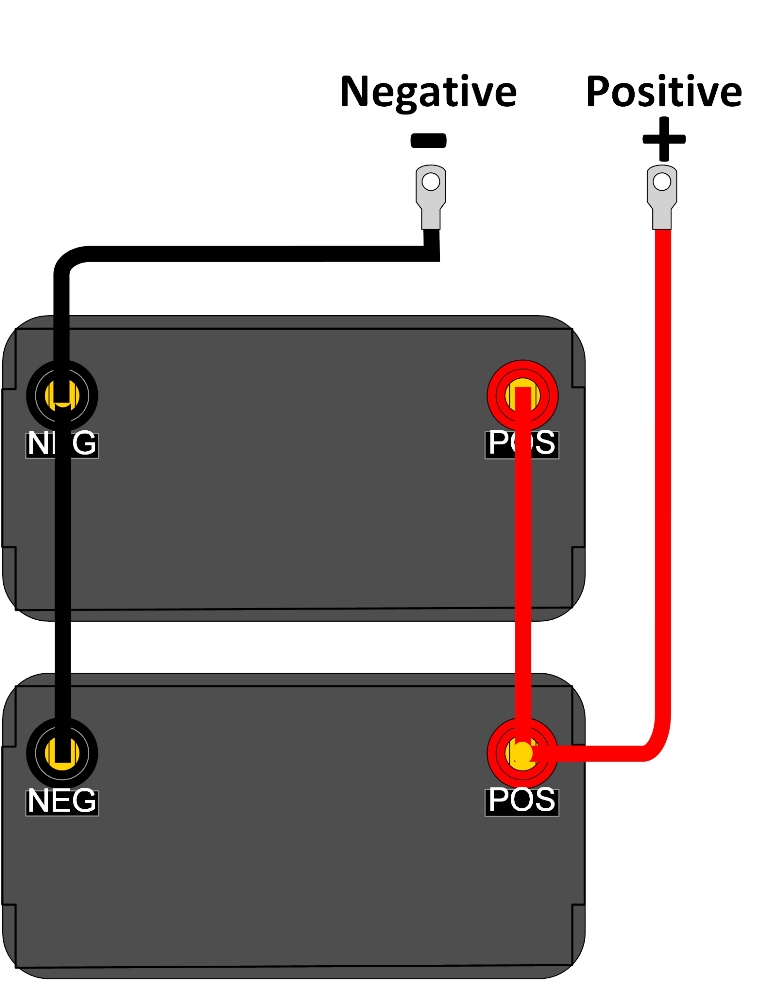

Stealaway - Looking at your image am I correct in saying the Red Positive cable remains on the first battery but then you moved the Black Negative cable to the 2nd battery and then linked them both with shorter cables?

I was told the reverse? I'm guessing it does not matter.
Stealaway said:
View attachment 460623
Click to expand...

Subscribers  do not see these advertisements


I don't think over such small battery bank its not going to make an haporth. If Burstner had supplied longer leads I would have.

I used jump leads purchased off ebay when i fitted my B2B - if you are careful when taking off the crocodile clips you are left with a crimped connection you can drill into and then connect to your battery. makes life a lot easier and you know they are rated high enough for your battery !!

they worked out a lot cheaper than buying cable separately !!

This thread might help.

www.motorhomefun.co.uk

Making the change from lead acid to lithium - a thread with pictures

So, after being lucky enough to get a lithium battery for less than half price, (thanks Jim), this thread will be the process for how I have changed over. I may be talking to myself a lot but that’s okay, I always search for rubbish like this when I do anything so I am hoping it will help in...
www.motorhomefun.co.uk www.motorhomefun.co.uk

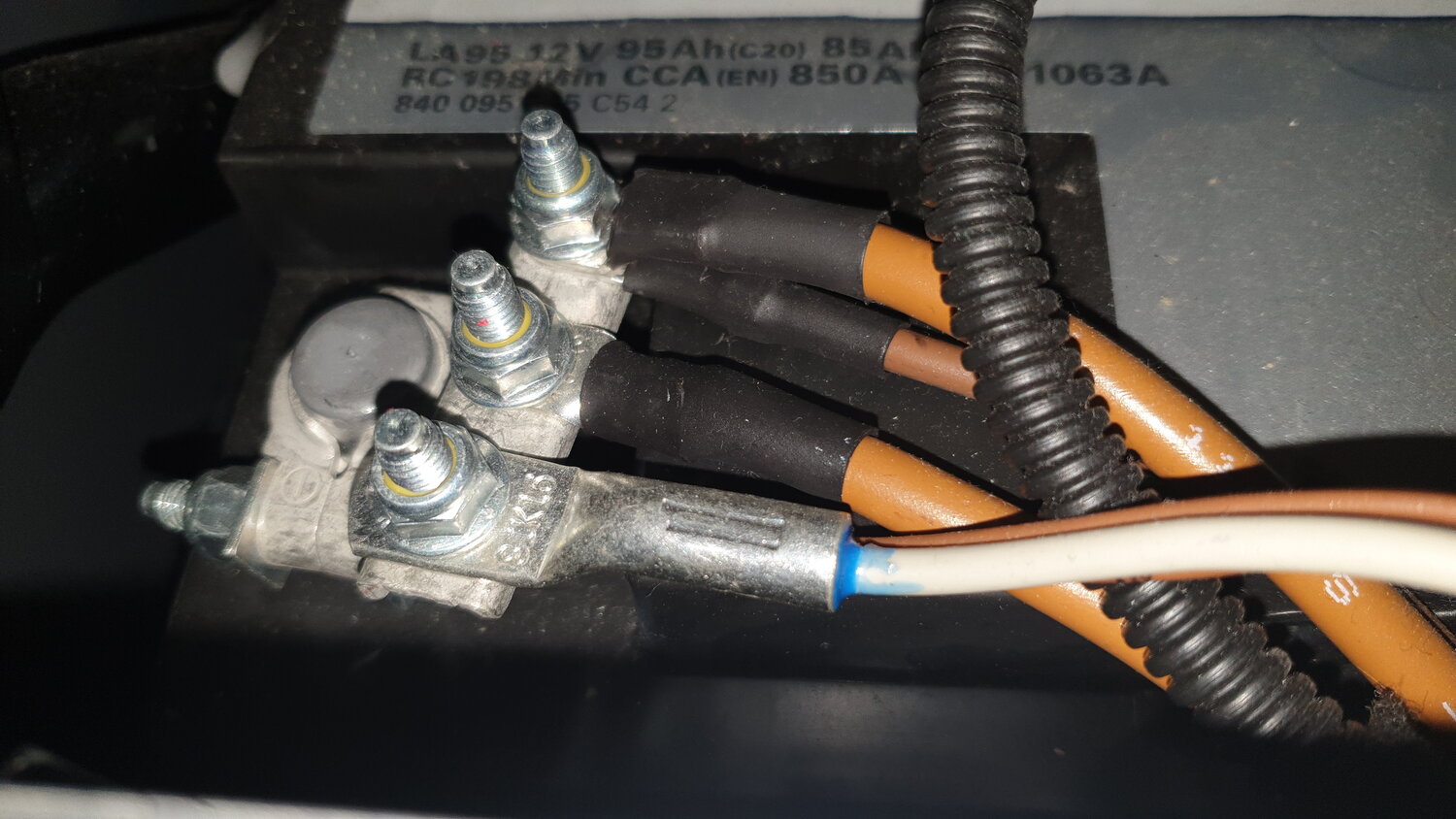

Just taken images of both the Negative and Positive connections..

Now, I'm puzzled as to which cable I should move across to start the connection.

Negative



Positive




2nd battery compartment.

Subscribers  do not see these advertisements


Found this cable set on Amazon for €26 - 4 AWG - max. Load flow: 200 A (12 V)

Should be fine right?



I'm starting to think the €259 installation quote might be worth it! :oops: :ROFLMAO: but then again I like doing my own modifications!

Ginger.Tog said:
I'm starting to think the €259 installation quote might be worth it! :oops: :ROFLMAO: but then again I like doing my own modifications!
Click to expand...
You might find that a local garage will crimp on the connectors if you take the connectors and wire. If cut to length and ready stripped, the actual crimping only takes a couple of seconds. For the price of a stein of weissbier.:cheers:

Found these at work, I think they will do the job!


Subscribers  do not see these advertisements


Ah ok, thank you for the info - Once I get the cables assuming they're the right ones I'll pop down to the local garage and ask them to crimp it for me.. As per autorouter comment I'm sure they'll do it for a "weissbier." :beerchug: ::bigsmile:

Wow that cable seems expensive. Amazon product ASIN B07KM3HWBZ
I suspect places like ebay will be able to do crimped cables of set lengths, which would be cheaper overall than buying the hydraulic crimping tool for a one off task.

Do have a look at some of the wiring diagrams available on the web. Ideally connect all charging and load from one battery positive, and all negatives to the second battery and then a further cable between the two battery positives, and two battery negatives. In theory both batteries then get used equally.

Ginger.Tog said:
Found these at work, I think they will do the job!
Click to expand...
You can see the coloured dots near the crimp points. Yellow, blue and red (with a bit of imagination). These are for crimping 'pre-insulated crimp connectors', with yellow, blue or red sleeves. The colours indicate the wire size. Yellow is the largest, up to 6mm2. Your wires are 4AWG, which is 21mm2.

Look for a tool that will do a hexagon crimp. The nearest standard European sizes are 16mm2 and 25mm2. Probably best to use the 16mm2 jaws.

Subscribers  do not see these advertisements


Ok, this is all new to me, thank you for the advice!

Looking at the image below which is the Positive Connector I should move this connector including all attached cables to the 2nd battery "Positive" - if that's how I understand it.

Then 2 shorter cables - one back to the positive and a second cable joining the negative circuit..




Kannon Fodda said:
I suspect places like ebay will be able to do crimped cables of set lengths, which would be cheaper overall than buying the hydraulic crimping tool for a one off task.

Do have a look at some of the wiring diagrams available on the web. Ideally connect all charging and load from one battery positive, and all negatives to the second battery and then a further cable between the two battery positives, and two battery negatives. In theory both batteries then get used equally.
Click to expand...

Great post and very refreshing to see genuine posters here to help others. I’m trying to figure out if one leisure battery and a 100w solar will be good enough weather depending to see us over a week on no hook up in August. Just for lights and a bit of water pumping. Will follow this tread if decide to add an extra battery. 👍🏻

Maybe look for some cables that are already crimped.

These are only 16mm2 / Awg 6 but should suffice if the batteries are going to live side by side under the seat....

XtremeAuto® POSITIVE/LIVE Pole, Battery Lead, Strap, Cable FOR Car, Van, 4x4, Pickup, Boat etc (RED 24"/600mm) Amazon product ASIN B01LYU3RXD

If you have a mooch you’ll probably find them in different lengths and gauges.

James-Alex said:
Great post and very refreshing to see genuine posters here to help others. I’m trying to figure out if one leisure battery and a 100w solar will be good enough weather depending to see us over a week on no hook up in August. Just for lights and a bit of water pumping. Will follow this tread if decide to add an extra battery. 👍🏻
Click to expand...
You can not go wrong with an extra battery, this is the uk August doesn’t guarantee sunshine, haha.

Subscribers  do not see these advertisements


If you do make your own, be aware that as your battery has posts, the battery terminals are different sizes on the positive and negative posts which is also different to the sizes used in some countries....ie a lot of terminal post clamps from the likes of China will be too small, don't ask me how I know 😂

XxAnthxX said:
Maybe look for some cables that are already crimped.

These are only 16mm2 / Awg 6 but should suffice if the batteries are going to live side by side under the seat....

XtremeAuto® POSITIVE/LIVE Pole, Battery Lead, Strap, Cable FOR Car, Van, 4x4, Pickup, Boat etc (RED 24"/600mm) Amazon product ASIN B01LYU3RXD

If you have a mooch you’ll probably find them in different lengths and gauges.
Click to expand...

Was thinking the same, wanted to wait until the seat was out and cut to correct length. Thinking 20" should be long enough which are already crimped for a mere €10 "6 AWG"

Link: Here




It's a fantastic forum!
James-Alex said:
Great post and very refreshing to see genuine posters here to help others. I’m trying to figure out if one leisure battery and a 100w solar will be good enough weather depending to see us over a week on no hook up in August. Just for lights and a bit of water pumping. Will follow this tread if decide to add an extra battery. 👍🏻
Click to expand...

Last edited:
Some will say don’t bother moving either of the original cables and simply link the batteries.....I followed what I read for creating a balanced battery bank set up.

It doesn’t matter if you move the positive terminal clamp (including all of it’s attachments) or the negative (including all of it’s attachments).

The idea is simply to have the current charge / draw diagonal across the battery bank.

I moved my negative as I fitted a Victron Smart Shunt Battery Monitor at the same time.

It‘s also best practice to keep the two links between the batteries the same length.

Subscribers  do not see these advertisements


Last edited:
