Following on from my other thread where I asked advice about repairing or replacing my old electrolux three way fridge, here is the installation story for my new fridge, a Waeco cr50 compressor fridge.

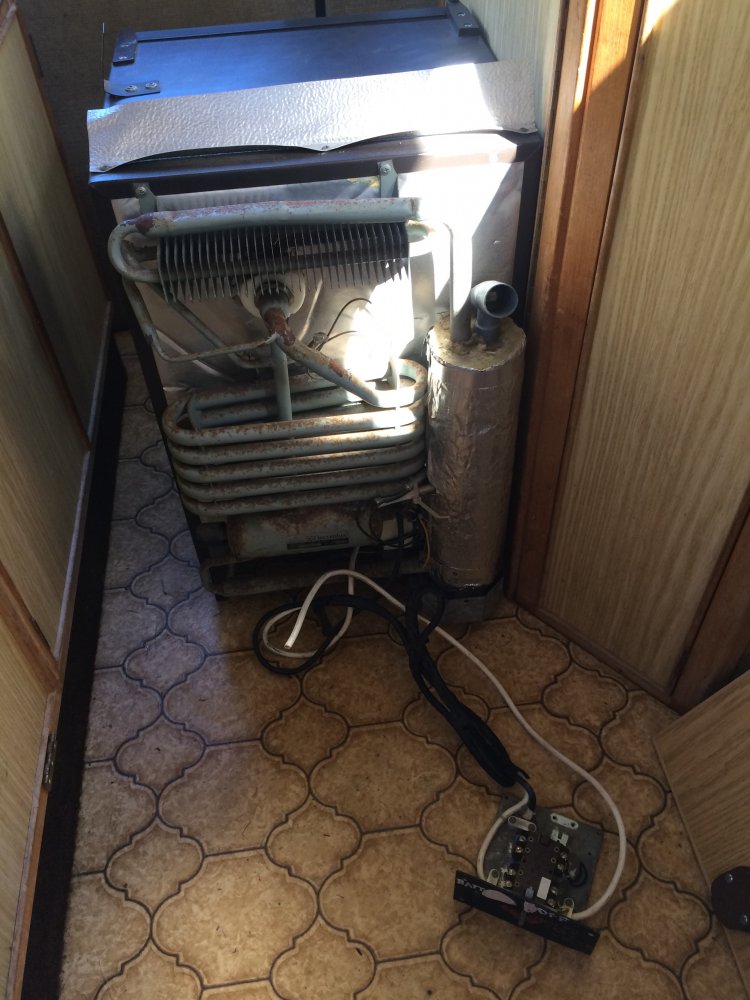

First job was the removal of the old fridge, flu and surplus wiring. The fridge came out very easily and I disconnected the wires after sliding it out

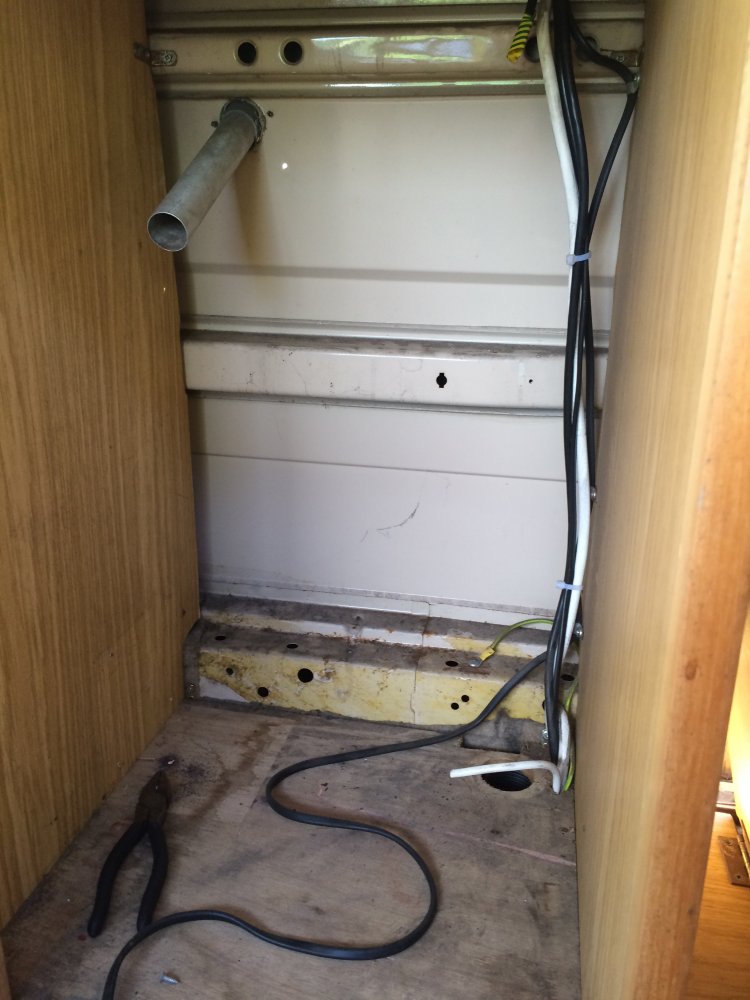

Leaving a big almost empty space
With just the flu in the way. I went outside, removed the flu cover
Then drilled out the pop rivets holding the flu in place. A quick cleanup and then the resulting 2" hole was blanked off using sikaflex and some black plastic
Before putting the old vent cover back in place.

After a quick dummy run to check the fit, I realised that I would need some wooden blocks to raise the fridge slightly, giving me clearance to open the door above the back seat base.

There are 4 fixing points in the sides of the fridge. To get to them you have to take out blanking caps. As you can see, they are quite tight but fortunately the fridge comes with spares so it's not a major issue if you wreck them taking them out.
Wiring went very smoothly too. All I had to do was run some cable I had left from my solar install from my habitation distribution fuse box to the back of the fridge and join it with chocolate blocks.

The manual says to use a 15A fuse, but I only had 10A or 20A. It's never a good idea to use a higher rated fuse than needed so I went with the 10A.

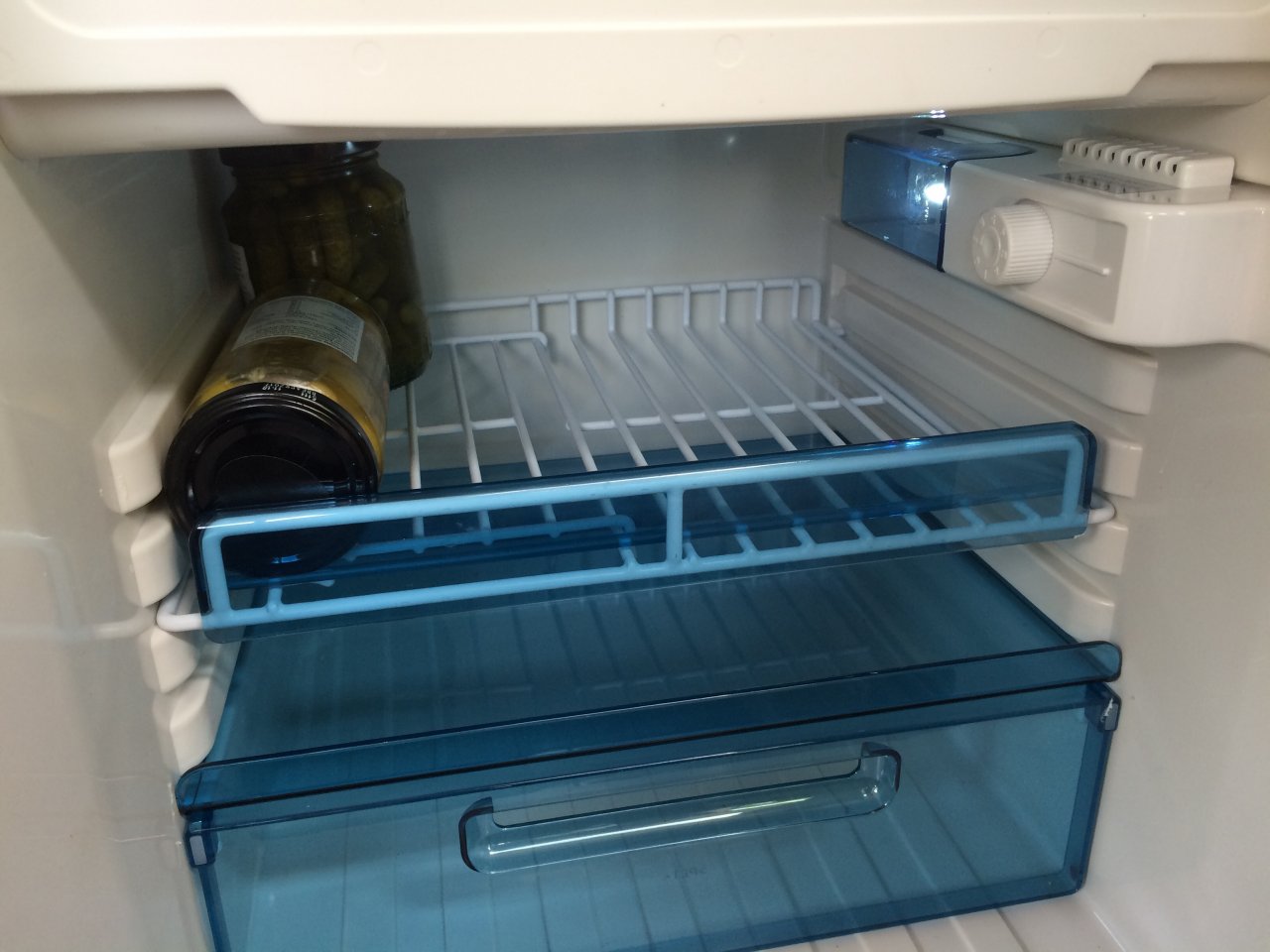

With all the screws in, here's the finished article.


And yes, it does work :)
Total time taken was about 3 hours and would have been a lot less without my daughter "helping" bless her ;)
